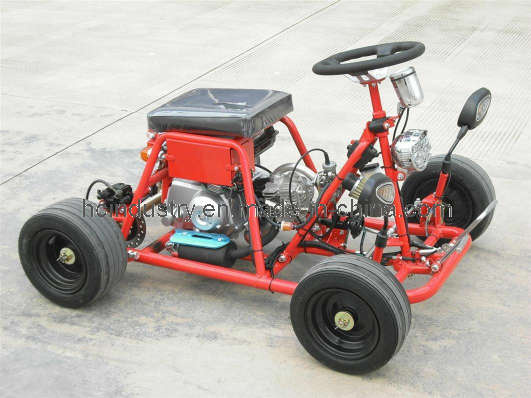

Home H&C Int'l Industrial Co., Ltd. 50CC Go Kart (HC-50GK-3A)
Specifications
| Prod Model: | HC-50GK-3A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Start-up: | Manual Start-up |
| Transmission: | Chain |
| Displacement: | 50CC |
| Certification: | EEC |
Product Description
1) Engine: 50CC, single cylinder, 4 stroke, air-cooled(110CC is available)2) Bore x stroke: 39 x 41.4mm
3) Compression ratio: 7.3: 1
4) Maximum power: 2.6kW/8500rpm
5) Maximum torque: 3.0kW/7, 500rpm
6) Electric start Ignition: CDI
7) Spark plug model: A7TC
8)Transmission: Chain drive
9) Maximum speed: 24kph
10) Wheelbase: 760mm
11) Tread: Front: 670mm Rear: 720mm
12)Mini ground clearance: 45mm
13)Mini turning radius: 7.5m
14)Loading capacity: 60kg
15)Seat height: 480mm
16)Maximum speed: 24kph
17)ank capacity: 1L
18) Rear brake mode: Disc brake (operated by left foot)
19)Tire: Front: 10 x 4.5-6 Rear: 10 x 5.5-6
20)Battery: 12V, 4Ah
21)Product size: 1, 090 x 850 x 660mm
22)Packing size: 114*84*52cm, 90*53*30cm(trailer)
23)Container Capacity: 50PCS/20ft, 100PCS/40ft, 110PCS/40HQ
