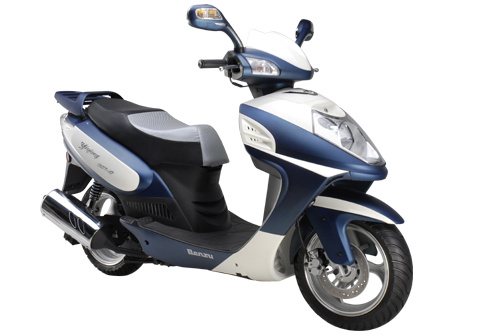

Home Fuwon International Group (Hongkong) Co., Limited EEC/EPA/DOT Scooter
Specifications
| Fuel Tank Capacity: | 5-8L |
|---|---|
| Maximum Loading Capacity: | ≥120kg |
| Engine: | 4 Stroke |
| Displacement: | 51-125CC |
| Certification: | DOT |
| Max Speed: | >50km/h |
Product Description
FW-125QT03Approve mode:
EEC EPA DOT
EEC NO.:e4*2002/24*0423
Product description:
1) Overall length:1955mm
2) Overall width:675mm
3) Overall height:1160mm
4) Wheel base:1400mm
5) Net weight:114kg
6) Maximum laden mass:150kg
7) Maximum speed:78km/h
8)Fuel tank volume:6.5L
9) Braking:Front wheel disc brake,Rear wheel drum brake
10) Starting method:Electric start.kick start
11) Ignition:C.D.I
12) Rate or fuel consumption:2.8L/100km
13) Tyre(front/rear):130/60-13 130/60-13
14) Battery:6FM6 12V 6Ah
15) Engine type:BZ152QMI
16) Engine mode:1-cylinder,4-stroke,air-cooled
17) Bore:52.4mm
18) Stroke:57.8mm
19) Displacement:125ml
20) Maximum power: 4.9/6500 kw/rpm
21) Maximum torque:7.8/4500 N.m/rpm
22) Compression ratio:9.2:1
23) Clutch type:Dry,centrifugal CVT system
