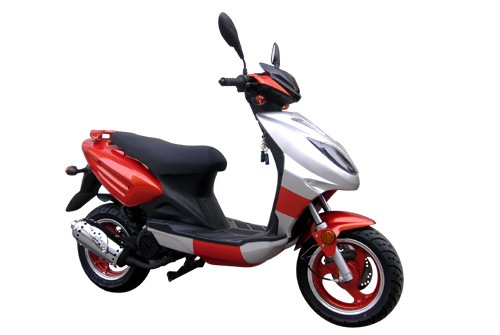

Home Fuwon International Group (Hongkong) Co., Limited EEC / EPA / DOT 150CC Scooter
Specifications
| Max Speed: | >50km/h |
|---|---|
| Certification: | EEC |
| Displacement: | 126-250CC |
| Engine: | 4 Stroke |
| Maximum Loading Capacity: | ≥120kg |
| Fuel Tank Capacity: | 5-8L |
Product Description
FW-150QT01Approve mode:
EEC EPA DOT
EEC NO.: e4*2002/24*1646
Product description:
1) Overall length: 1820mm
2) Overall width: 700mm
3) Overall height: 1165mm
4) Wheel base: 1290mm
5) Net weight: 97kg
6) Maximum laden mass: 150kg
7) Maximum speed: 85km/h
8)Fuel tank volume: 5.0L
9) Braking: Front wheel disc brake, Rear wheel drum brake
10) Starting method: Electric start. kick start
11) Ignition: C. D. I
12) Rate or fuel consumption: 2.9L/100km
13) Tyre(front/rear): 120/70-12 130/70-12 or 120/70-12
14) Battery: 6FM6 12V 6Ah
15) Engine type: BZ157QMJ
16) Engine mode: 1-cylinder, 4-stroke, air-cooled
17) Bore: 57.4mm
18) Stroke: 57.7mm
19) Displacement: 149ml
20) Maximum power: 7.1/7000 kw/rpm
21) Maximum torque: 10.8/6500 N. m/rpm
22) Compression ratio: 10.5: 1
23) Clutch type: Dry, centrifugal CVT system
