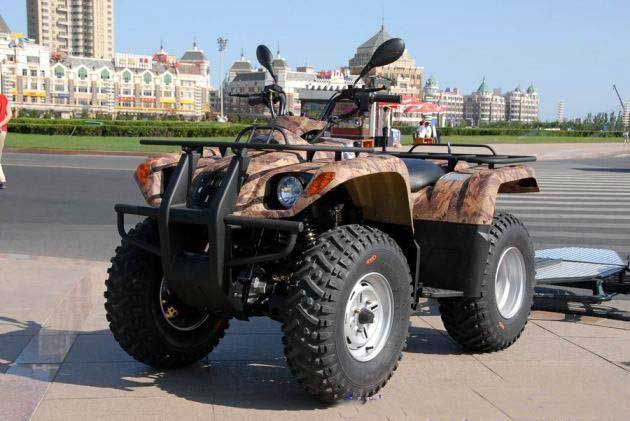

EEC & EPA ATV 400cc (4x4) with Jianshe Yamaha Engine

Specifications

Product Description

EEC ATV400cc(4x4) with new designed appearance
Specifications and features:
Packing Sizes(L*W*H): 2100*1125*1175mm
Minimum Ground Clearance: 210mm
Dry Weight: 270Kg
Load Capacity: 210Kg
Maximum Speed: Up and equal 75km/h
Starting Capability: Down and equal 15s
Climbing ability: Up and equal 15 degree
IgnitionSystem; Electric and pull
Chransmission Systems: Shaft drive, reverse gear
Turning Semidiameter: 3175mm
Fuel Tank Capacity: 14L
Tyre, front: AT25x8-12
Tyre, rear: AT25x10-12
Engine Displacement: 387.4ml
Compression Ratio: 8.7: 1
Maximum Power: 16kw(600r/min)
Maxiumu Torque: 26N. M(5000r/min)
Starting system: Electric and hand pull recoil start
Shock absorption system: Hydraulic pressure
Lubrication: Press splash
Brake System: Front disc brake and rear drum brake
