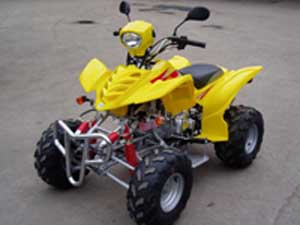

Home China Newstyle Vehicles Manufacturing Corp. EEC ATV200cc with Water Cooled
Specifications
| Prod Model: | EEC ATV200cc |
|---|
Product Description
New design ATV quad with EEC approval and coc documentsSpecifications (ATV200cc with EEC):
Features:
1) engine type: Single cylinder. Water-cooled,.4- stroke
2) max. Speed (km/h): 60
3) hand clutch and inner reverse
4) transmission system: Shaft drive
5) piston displacement (ml): 200:193.2
6) maximum power (kw/rpm): 12.5/8000
7) maximum torque (n. M/rpm): 15.0/6000
8) starting method: Electric
9) seat height (mm): 720
10) ground clearance (mm): 110
11) brake (front/rear): Drum/drum
12) front tire (psi): 19 x 7-8/2.9
13) rear tire (psi): 18 x 9.5-8/2.9
14) ignition type: Cdi
15) fuel tank capacity (l): 4.5
16) fuel no.: Rq 90
17) lubrication type: Pressure, splash
18) idling/turning speed (rpm):1500
19) front suspension: Independent suspension
20) rear suspension: Mono-shock swing arm
21) climb capability:30 degree
22) engine oil capacity (l): 0.9
23) parking brake: Mechanical lock
24) battery:12v/9ah
25) gear oil capacity (l): 0.11
26) net weight (kg): 150
27) rider capacity: 1 person
28) rear track (mm): 760
29) front track (mm): 810
30) compression ratio: 10.16:1
31) cylinder arrangement: Single cylinder
32) axle base (mm): 1110
33) lubrication: Press splash
34) dimensions (l x w x h): 1630 x 1040 x 760mm
Conveyance:
Qty/20' FCL: 30 cartons
Qty/40' HQ: 66 cartons
