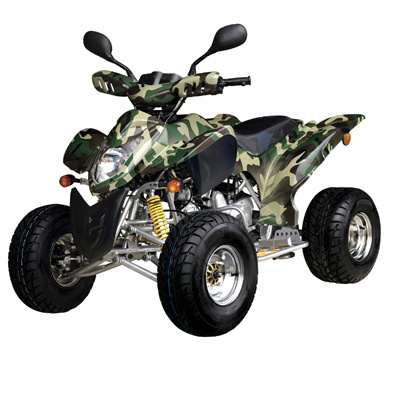

EEC / COC Approved 150cc Full Automaticity or Manual Drive (FA150E-2)

Specifications

Prod Model:	FA150E-2

Product Description

Engine type: Single cylinder, 4 Stroke, Air-cooled
Engine displacement: 150cc
Max Power: 7. 1KW/7000-7500RPM
Max Torque (r/min): 2. 8NM/5000-5500RPM
Transmission:
Start mode: ELECTRIC & KICK STARTER
Transmission mode: C. V. T
Brake type: Front dual sealed drums Rear hydraulic disc
Parking: Front/rear wheel
Drive: Chain
Max speed: 55kms/h
Ignition: C. D. I
Front suspension: Double A-ARM
Rear suspension: Swing ARM
External condition:
Lengthx Width x Height (mm): 1600*960*960MM
Minimum Turning Radius (mm): 2500
Climbing degree: 30
Light: Two head lights
Seat height (mm): 720
Top speed(km/h): 55
Type Dimension (Front/Rear): AT19*7-8/AT18*9. 5-8
Cover material: A. B. S (PLASTIC)
Color: Red, Yellow, Black, Blue, Green
Capacity:
Tank capacity: 7. 0L(1. 5LMP GAL, 1. 8US GAL )
Reserver amount: 1. 3(0. 29LMP GAL, 0. 34 US GAL )
Packing:
Carton dimension: 1470*870*800mm
N. W.: 140kgs
G. W.: 174kgs
