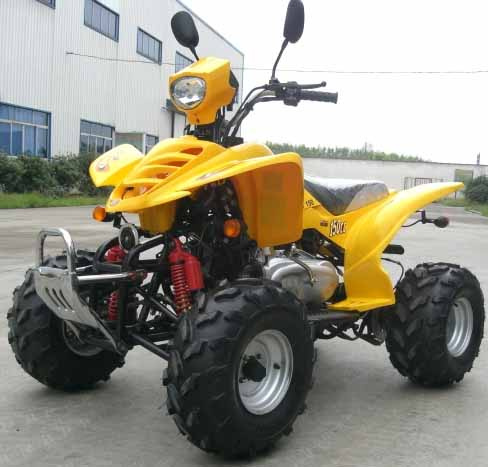

EEC / COC Approved 150cc CVT Double Arm-Swing ATV (FA150S-2)

Specifications

Prod Model:	FA150S-2

Product Description

EEC / COC Approved 150cc CVT ATV (FA150S-2)
1) Engine type: Single-cylinder, compelled air-cooled, 4-stroke
2) Power: 6.2kW/7, 200rpm
3) Max. Torque: 9.8N. M/4, 800rpm
4) Min. Ground clearance: 120mm
5) Wheel base: 1, 080mm
6) Fuel tank capacity: 6.6L
7) Transmission mode: Chain
8) Start mode: Electric
9) Tires:
A) Front wheels: 19 x 7-8
B) Rear wheels: 18 x 9.50-8
10) Max. Speed: 65km/h
11) Break type (F/R): Disc/disc
12) Power source: 12V, 9Ah
13) Height of seats: 760mm
14) Dry weight: 153kg
15) Load capacity: 105kg
16) Climbing degree: 20
17) Front hanging: Double arm-swing
18) Rear hanging: Integral
19) Cylinder size: 57.4 x 57.8mm
20) Displacement: 149ml
21) Transmission: CVT with inner reverse gear
22) Min. Turning radius: 2, 400mm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Engine oil: 0.93L
26) Gear oil: 0.11L
27) Max. Number of riders: 1
28) Lubrication: Press splash
29) Compression proportion: 10.0: 1
30) Gas cylinder number: 1
31) Product dimensions (L x W x H): 1, 710 x 1, 000 x 1, 100mm
Outer packing:
Carton dimensions: 1, 490 x 840 x 800mm
Conveyance:
Qty/20' GP: 20pcs
Qty/40' GP: 44pcs
Qty/40' HQ: 66pcs
