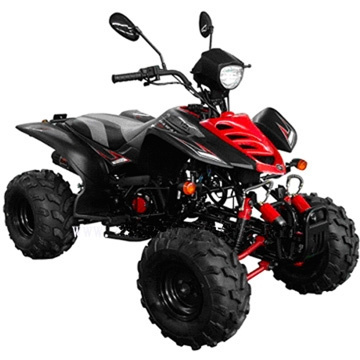

EEC / COC 110CC Approved Shaft Drive Double Arm-Swing ATV (FA110E)

Specifications

Prod Model:	FA110E

Product Description

1) 110cc,eec approved, Single cylinder, air-cooled, 4-stroke atv
2) Power: 5. 0KW/7, 500rpm
3) Max. Torque: 7.41N. M/5, 500rpm
4) Min. Ground clearance: 100mm
5) Wheel base: 1, 110mm
6) Fuel tank capacity: 6. 6L
7) Transmission mode: Shaft
8) Start mode: Electric
9) Tires:
A) Front wheels: 19 x 7-8
B) Rear wheels: 18 x 9.50-8

10) Max. Speed: ≥55km/h
11) Break type (F/R): Drum/drum
12) Power source: 12V, 9Ah
13) Height of seats: 680mm
14) Dry weight: 153kg
15) Load capacity: 105kg
16) Climbing degree: ≥20
17) Front hanging: Double arm-swing
18) Rear hanging: Integral
19) Cylinder size: 52.4 x 49.5mm
20) Displacement: 107mL

21) Transmission: 3 gears with reverse gear. Automatic clutch
22) Min. Turning radius: 2, 400mm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Engine oil: 0.9L
26) Gear oil: 0.2L
27) Max. Number of riders: 1
28) Lubrication: Press splash
29) Compression proportion: 9.1: 1
30) Gas cylinder number: 1
31) Product Dimensions (L x W x H): 1, 760 x 1, 000 x 1, 120mm

Outer packing:
Carton dimensions: 1, 485 x 835 x 770mm

Conveyance:
Qty/20' GP: 29 units
Qty/40' GP: 64 units
Qty/40' HQ: 66 units
