Specifications
Prod Model: |
GT400Z-1 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Shaft Drive |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Structure: |
Two Side Doors |
Transmission Type: |
Electric/Manual |
Displacement: |
400CC |
Maximum Speed: |
75km/H |
Brake Type: |
Disc/Drum |
Product Description

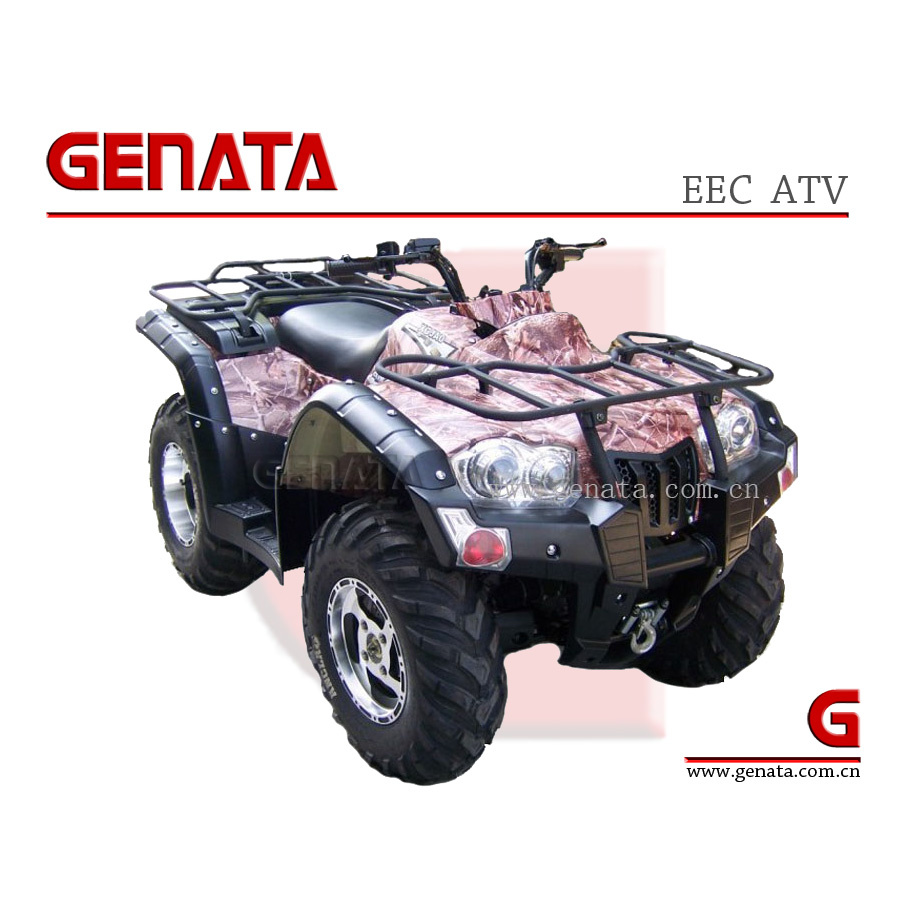

Japan Brand China Product 400CC 4WD EEC ATV/Quad. Full automatic.
EEC No. E4*2002/24*1851*00. It is fit for on road legal use in Europe.
Engine type: |
Single cylinder, air-cooled, 4-stroke |
Power: |
16 kw / 6500rpm |
Max. Torque: |
26N. m / 5, 000rpm |
Min. Ground clearance: |
100mm |
Wheel base: |
1, 240mm |
Fuel tank capacity: |
6.6L |
Transmission mode: |
shaft |
Start mode: |
Electric/manual |
Tire: |
Front wheels: 25 × 8-12 |
|
Rear wheels: 25× 10-12 |
Max. Speed: |
75km/h |
Break type (F / R): |
Disc / drum |
Power source: |
12V-20Ah |
Height of seats: |
860mm |
Dry weight: |
135kg |
Load capacity: |
220kg |
Climbing degree: |
22 |
Front hanging: |
Double arm-swing |
Rear hanging: |
Integral |
Cylinder size: |
83 × 71.6mm |
Displacement: |
387.4ml |
Transmission: |
5 gears with one reverse gear, one neutral-gear, automatic clutch |
Min. Turning radius: |
2, 900mm |
Parking trig: |
Mechanical lock |
Ignition mode: |
CDI |
Engine oil: |
2.9L |
Gear oil: |
Front tank: 0.4, Rear tank: 0.25L |
Max. Number of riders: |
2 |
Lubrication: |
Press splash |
Compression proportion: |
8.7: 1 |
Gas cylinder number: |
1 |
Product dimensions (L × W × H): |
2, 100 × 1, 125 × 1, 175mm |
Outer packing: |
Carton dimensions: 2, 150 × 1, 160 × 880mm |
Conveyance: |
20' GP/ 10pcs 40' GP/ 22pcs 40' HQ/ 33pcs |
