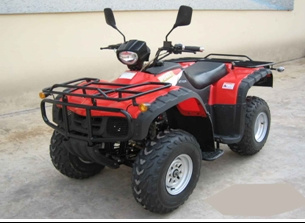

EEC 250CC ATV

Specifications

Prod Model:	EEC CHY250L-F (SUV)

Product Description

ENGINE:
Engine Type: Single cylinder, 4-stroke, water-cooled
Bore and Stroke: 2-72*60
Ignition: F.C.I.
Starter: Electric recoil backup
Piston Displacement: 244.3(ml)

DRIVE TRAIN:
Graded System: Auto-graded
Driveline: Chain drive

CHASSIS/SUSPENSION/BRAKES
Front Suspension: Single arm
Front / Rear Brakes: Drum/disc
Front Tires: 23x7-10
Rear Tires: 22x10-10.
Maximum Power (kw/r/min): 11/7000
Maximum Torque: 17.6/5500

DIMENSIONS:
Length/Width/Height: 1970*1050*1160
Axle Base: 1160(mm)
Wheel Base (Front/Rear): 880/770(mm)
Dry Weight: 220(kg)
Max Load: 165(kg)
Seat Height: 810(mm)
Compression Ratio: 10.0: 1
Minimum Turning Radius: 2900(mm)
Minimum Ground Clearance: 155(mm)
QTY/Container: 20units/20', 42units/40'

OTHER:
Battery: 12V-14AH
Fuel Tank Capacity: 12L
