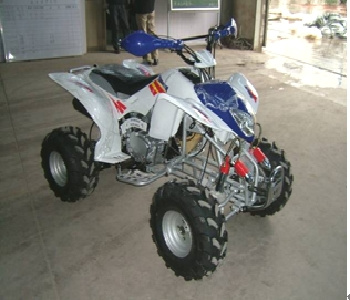

200CC ATV Double Arm

Specifications

Prod Model:	CHY200L-B (Dinosaur)

Product Description

ENGINE:
Engine Type: Standing, single-tank, 4-stroke, manual clutch, air-cooling
Bore and Stroke: 63 x 63
Ignition: C. D. I
Starter: Electric recoil backup
Piston Displacement: 196(ml)

DRIVE TRAIN:
Graded System: Speed adjustment, inside reverse set
Driveline: Chain drive
CHASSIS/SUSPENSION/BRAKES
Front Suspension: Double arm
Front / Rear Brakes: Drum/disc
Front Tires: 19x7-8.
Rear Tires: 18x9...5-8
Maximum Power (kw/r/min): 10/7500
Maximum Torque: 13/5500

DIMENSIONS:
Length/ Width/ Height: 1600x 900 x 930(mm)
Axle Base: 1080(mm)
Wheel Base (Front/Rear): 715/640(mm)
Dry Weight: 118(kg)
Max Load: 165(kg)
Seat Height: 800(mm)
Compression Ratio: 9.1: 1
Minimum Turning Radius: 2400(mm)
Minimum Ground Clearance: 113(mm)
Container: 30units/20GP, 66units/40HQ

OTHER:
Battery: 12V-9AH
Fuel Tank Capacity: 4L
