Home Golden Motor Technology Co., Ltd. E-Throne! New Version! Light Weight! 1 Second Foldable Brushless Power Electric Wheelchair, The Best in The World

E-Throne! New Version! Light Weight! 1 Second Foldable Brushless Power Electric Wheelchair, The Best in The World

E-Throne! New Version! Light Weight! 1 Second Foldable Brushless Power Electric Wheelchair, The Best in The World
Price: US $ 1320-2200/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union

Specifications

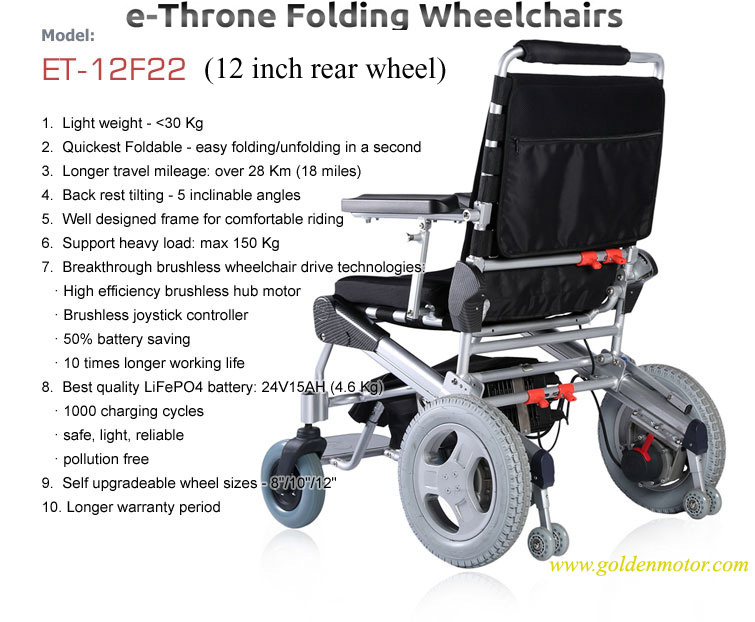

Prod Model: ET-12F22
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 8'' 10'' 12''
Motor: Brushless
Back Rest Tilting: 5 Inclinable Angles
Climbing Capability: 15??
Load Capacity: 100-200kg
Accessories: Seat Belt
Certification: FDA
Folded: Folded
Voltage: 24V

Product Description

Be Quick! Get the only One Chance Urgently!

You are Invited to join our exclusive distributors team for this new innovative folding electric wheelchair in every countries.

Following countries already exists exclusive dealers: USA, Canada, Spain, Israel, India



 Golden Motor e-Throne Folding Wheelchairs  (Absolutely The Best IN The World)





e-Throne: Redefinition of Electric Wheelchair Technologies





Top Quality Workmanship, Comfortable Riding Experience Guaranteed!
Super Light, Quickest Folding/Unfolding, Inclineable Back, Sturdy Aluminium Frame,
50% Battery Saving, 28km Travel Range, 10x Longer Motor Life, Maintenance Free ......

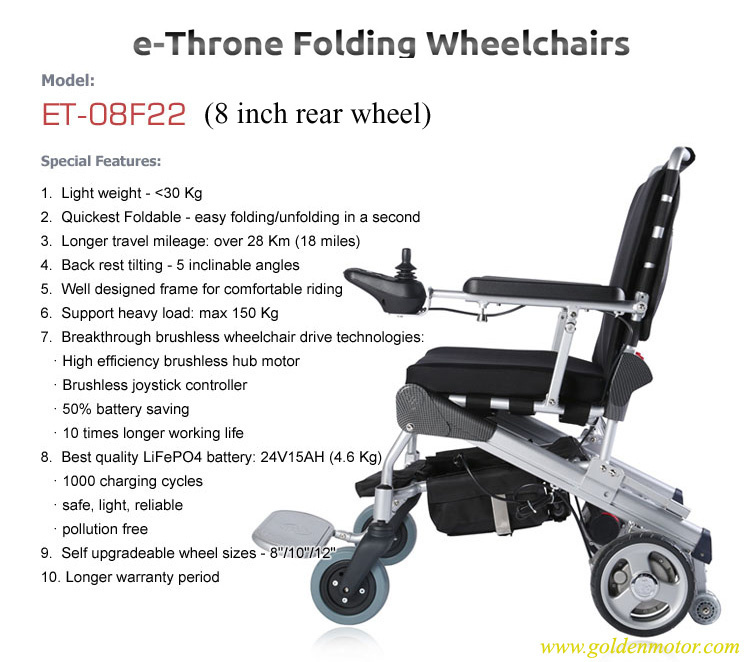

Special Features:



1. Light weight - <30 Kg

2. Quickest Foldable - easy folding/unfolding in a second

3. Longer travel mileage: over 28 Km (18 miles)

4. Back rest tilting - 5 inclinable angles

5. Well designed frame for comfortable riding

6. Support heavy load: max 150 Kg

7. Breakthrough brushless wheelchair drive technologies:

l       High efficiency brushless hub motor

l       Brushless joystick controller

l       50% battery saving

l       10 times longer working life

8. Best quality LiFePO4 battery: 24V15AH (4.6 Kg)

l       1000 charging cycles

l       safe, light, reliable

l       pollution free

9. Self upgradeable wheel sizes - 8"/10"/12"

10. Longer warranty period

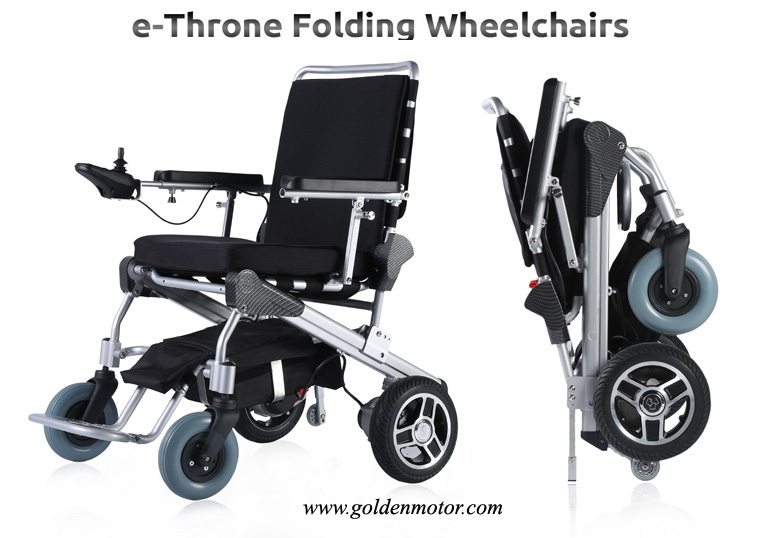

Real pictures and spec. for each portable / foldable electric power wheelchair :

 Details for the folding wheelchairs:

Parametere-throne 8''10''e-Throne 12''
Device Weight:(with battery):

29kg(24V10AH battery );

30.7kg(24V15AH battery)

31kg(24V10AH battery );

32.7kg(24V15AH battery)

Device Weight(without battery):26 kg28 kg
Folded Dimensions:(L x W H):80cm*65cm*35cm80cm*68cm*35cm
Unfolded Dimensions:100cm*65cm*95cm100cm*68cm*96cm
Packing Dimensions:72cm*40cm*90cm72cm*40cm*90cm
Seat Dimensions:(L x W):42cm*45cm42cm*45cm
Seat Height: (from ground):50cm52cm
Arm Rest Height:(from ground):68cm70cm
Turning Radius:120cm120cm
Ground Clearance:10cm10cm
Front Wheels:(Diameter x Width):6''*5cm8''*5cm
Rear Wheels:(Diameter x Width):8''*5cm12''*6.5cm
Wheelbase:45cm48cm
Tread:60cm65cm
Tyre Type:PU filled tirePU filled tire
Wheel Material:RubberRubber
Pedal(L*W):32cm*13cm32cm*13cm
Motor Type:24V180W brushless hub motor24V250W brushless hub motor
  Battery:

24v10ah Li-on battery:2.6kg 14cm*16cm*7cm

24v15ah Li-on battery:4.7kg 19cm*19.5cm*10.5cm

Charging cycle >1000times

  Brake Type: Electromagnetic brake

  Maximum Speed4MPH

  Max Capacity200kg
  Distance on Full Battery:

20KM(24V10AH)

35km(24V15AH)

  Climbing ability:

  Slope capacity



Customer's Experience about this innovative folding wheelchair



"I just recently purchased a ET-08F22 wheelchair and with the batteries arriving Tuesday I have been using it for the last 2 days. I have to congratulate Golden Motors on the design of this chair. It is brilliant in the way it folds so easily, so small and light, perfect for travel and strong enough for many everyday uses. You can say that I am a very pleased customer." -- Greg Burge, USA



It is extremely convenient due to its compact size and ability to be folded for transport in just about any vehicle: a Car, Truck, SUV. It is also convenient enough to take on an Train, Bus, Cruise Ship or Airplane. The chair can go just about anywhere - Indoors or Outdoors.



If you are involved with high performance EV applications, there is an important motor technology which is pancake motor (or disc shaped motor) from GoldenMotor. What separates the pancake motor from conventional axial motor is its slotless disc armature. This difference enables pancake motors to deliver a level of performance which is not attainable with conventional ironcore motor designs used by most traditional power wheelchairs in today's market. In addition to performance advantages, pancake motors have a unique flat & compact shape that is best fit for motorized wheel applications, such as power wheelchairs, power scooters. The unique advantages that the slotless pancake motor technology has brought include:




  • Very long operating life
  • Absolutely zero cogging for ultra smooth velocity & torque even at slow speeds
  • Low armature mass for high accelerations and decelerations
  • Low inductance for almost instantaneous torque
  • Very high peak torques for rapid accelerations
  • Flat motor profile for extremely compact size
  • Stamped winding technology for very high reliability and low cost
  • Low Electrical Noise

    Golden Motor Technology Co Ltd just launched its innovative power wheelchairs equiped with above mentioned pancake motors. They come with following unbeatable features:

  • Super integrated motorized wheel drive -- Make your wheelchair Simple, Neat and Light
  • Higher efficiency with our stamped pancake motor technology -- Drive you eXtra Miles
  • Double trip range: Up to 25Km with only 24V/20AH SLA pack (180x76x168mm - 12V20AH each)
  • Lowest power consumption: Less than 4Amps at speed of 4MPH at level
  • Two-motor combined output power: 400W/24V or 600W/36V with the same set of motors
  • Built-in electric-magnetic parking brake (EMB) and manual release handle
  • Climbing up and parking with 110Kg load at 12 degree slope easily
  • Lightest weight (30Kgs w/o battery, 44Kgs with battery)
  • Maintenance-free puncturable tyre
  • High load capacity (180kgs maximum)
  • State of art wheelchair joystick controller

Welcome to join our dealers team! No investment; No Risk! Drop Shipping for you!

For more information, please send me an inquiry with your valid email address --- Johnson
