Specifications
Prod Model: |

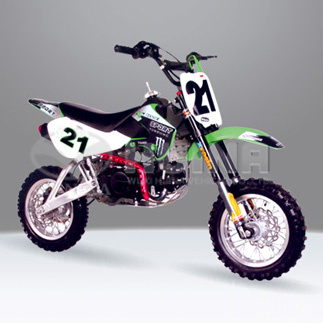

HN138GY-4A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
CQC |
Starting System: |
Kick Start and Electric Start |
Engine: |
4 Stroke |
Displacement: |
126-250CC |
Product Description
CONFIGURE:
Colors available: Red, blue, black, white
Features: *
Decals (Y/N): Y
Tool kit (Y/N): Y
Remote start (Y/N): N
Remote engine stop (Y/N): N
Remote alarm (Y/N): N
Speed limiter (Y/N): Y
Assembly required: Front wheel, handlebar, front brake, rear shock
ENGINE INFO:
Engine type: 4-Stroke, single cylinder, chain
Engine brand: *
Displacement: 138CC
Cooling: Oil cooled
Max horsepowe: *
Max torque: *
Bore*stroke: *
Max speed: 52.7mile/h
Climbing ability: *
Ignition: C. D. I
Starting system: Kick
Battery: *
Carburetor brand: PZ22
Engine oil: SAE15W/40SF
Gear oil: *
CHASSIS etc:
Clutch: Hand-off
Transmission: International gear with 4 speed
Driveline: Chain drive
Driving wheel: Rear wheel drive
Suspension, front/rear: *
Brakes, front/rear: Hydraulic disk/Hydraulic disk
Brake operation: Hand+foot
Tires, front/rear: 80/100-12/80/100-12
Fuel capacity/type: 0.8gal
Weight, G. W. /N. W: 169.4/143lbs
Max load: 165lbs
DIMENSIONS:
Wheelbase: 46.4inches
OA L*W*H: 64.5*30.9*40.5inches
Height to seat: 30inches
Min ground clearance: 11.4inches
Carton size: 53.5*14.1*32.8inches
Shipping info: 144PCS/40HQ
