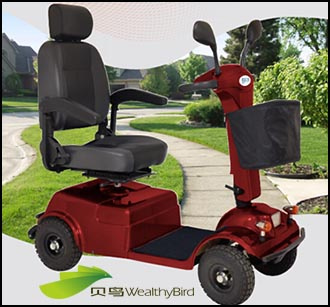

Curtise Electric Mobility Scooter 410
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | 410 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: | Curtise Electric Mobility Scooter 410 |
| Max Forward Speed: | 8.3km/H |
| Max Backward Speed: | 4-6km/H |
| Braking Distance: | 2m |
| Max Climbing Slope: | 12 Degrees |
| Ground Clearance: | 135 Mm |
| Loading Capacity: | 120kgs |
| Turning Radius: | 1.72m |
| Range Per Change: | 30km |
| Motor Rated Power: | 450W |
Product Description
Curtise Electric Mobility Scooter 410Overall Dimentions (LXWXH) "1400 x630x1230mm "
Max Forward Speed 8.3km/h
Max Backward Speed 4-6km/h
Braking Distance(≤) less than 2m
Max Climbing slope 12 degrees
Ground Clearance 135 mm
Loading Capacity 120kgs
turning radius 1.72m
Range per Change 30km
Front Tire 10"
Rear Tire 10"
Motor Rated Power 24V 450W
Controller PG S-Drive 70A(or Curtise 70A 1212-2401)
Charger 24V 4A
Batteries(lead acid) 12V/38AH x 2 Lead acid (45AH)
Braking System Electric Regenerative Braking & Hand brake
Net Weight with Battery 85kgs
Gross Weight 104kgs
Battery Weight(2pcs) 27.6kgs
Packing Size: 1480x680x860mm
Container packing 20GP : 36
40GP :75
40HQ : 88
Max Forward Speed 8.3km/h
Max Backward Speed 4-6km/h
Braking Distance(≤) less than 2m
Max Climbing slope 12 degrees
Ground Clearance 135 mm
Loading Capacity 120kgs
turning radius 1.72m
Range per Change 30km
Front Tire 10"
Rear Tire 10"
Motor Rated Power 24V 450W
Controller PG S-Drive 70A(or Curtise 70A 1212-2401)
Charger 24V 4A
Batteries(lead acid) 12V/38AH x 2 Lead acid (45AH)
Braking System Electric Regenerative Braking & Hand brake
Net Weight with Battery 85kgs
Gross Weight 104kgs
Battery Weight(2pcs) 27.6kgs
Packing Size: 1480x680x860mm
Container packing 20GP : 36
40GP :75
40HQ : 88
