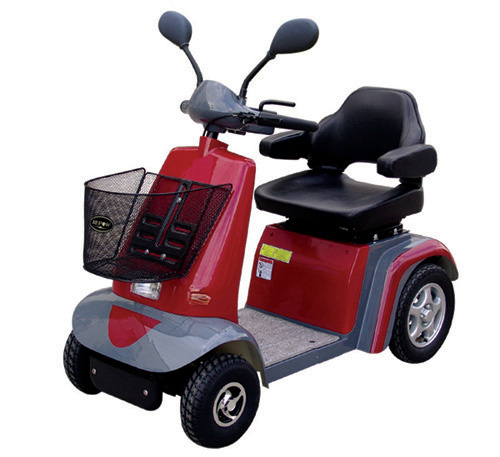

14 inch Electric Mobility Scooter 414L with CE
| Price: | US $ 800-880/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | 414L |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: | Electric Mobility Scooter 414lwith CE |
| Max Forward Speed: | 12km/H |
| Max Backward Speed: | 6km/H |
| Braking Distance: | 2.4m |
| Max Climbing Slope: | 12 Degrees |
| Ground Clearance: | 90 Mm |
| Loading Capacity: | 140kgs |
| Turning Radius: | 1.8m |
| Range Per Change: | 30km |
| Motor Rated Power: | 450W |
Product Description
Electric Mobility Scooter 414L with CE
features:
1.Simple to operate controls and instruments.
2.Front protection bumper. Front Running Lamps.
3.Comfortable and Conveniet Adjstable Seat.
4. Storage Box.
5.Anti-Tip Safety rear wheels. Rear Running Lamps.
6. Option: comfortable luxury Chair.
| Overall Dimentions (LXWXH) | "1300 x620 x 980mm " |
| Max Forward Speed | 12km/h |
| Max Backward Speed | 6km/h |
| Braking Distance(≤) | less than 2.4m |
| Max Climbing slope | 12 degrees |
| Ground Clearance | 90 mm |
| Loading Capacity | 140kgs |
| turning radius | 1.8m |
| Range per Change | 30km |
| Front Tire | 10" |
| Rear Tire | 14" |
| Motor Rated Power | 24V 450W |
| Controller | PG S-Drive 120A ( or Curtise 110A 1228-2908 ) |
| Charger | 24V 4A |
| Batteries(lead acid) | 12V/38AH X 2 Battery Size(45AH) |
| Braking System | Electric Regenerative Braking & Hand brake |
| Net Weight with Battery | 96kgs |
| Gross Weight | 111kgs |
| Battery Weight(2pcs) | 27.6kgs |
| Packing Size: | 1470x740x1040mm |
| Container packing | 20GP : 24units |
| 40GP :48units | |
| 40HQ: 48units | |
