Price: | US $ 870-915sets |
---|---|
Trade Terms: | FOB,CFR,EXW |
Min Order: | 10sets |
Pay Type: | L/C,T/T |
Specifications
Prod Model: | DJ150ZH-6 |
---|---|
Markets: | South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: | China Cargo Motorcycle Rickshaw Parts |
Engine Brand: | Lifan/Loncin/Zongshen |
MOQ: | 10 Sets |
Size: | 3155X1250X1430 Mm |
Brand: | Ducar; Kawasaki;OEM |
Add.: | Chongqing, China |
Type: | Cargo Motorcycle |
Displacement: | 126-250CC |
Engine Type: | 4-Stroke |
Fuel: | Gas / Diesel |
Certification: | CCC |
Condition: | New |
Product Description
Part I Technical Design | Application | Cargo&passengers Transport | Part III Operation | Starting System | Electric/Kick |
Design Max Speed | ≥60 km/h | Transmission | 4 Forward &1 Reserse Gears | ||
Loading Capacity | 300-500 kg | Front suspension | Normal shock absorber arms | ||
Unladen Kerb Weight | 300 kg | Rear axle | Normal car rear axle | ||
Dimension(L*W*H) | 3155x1250x2030 mm | Tire | 4.50-12pr | ||
Cargo size(L*W) | 1600*1250mm | Rear suspension | 3+2 Leaf spring | ||
Track | 1050 mm | Gearshift Control | Manual-Foot | ||
Wheel Base | 2100 mm | Clutch Method | Manual-Hand | ||
Ground Clearance | 160 mm | Brake Operate Mode | Manual-Hand or Foot | ||
Brake Mode | Front&Back wheels, Drum | Part IV Packaging | Transport | By Land/Sea/Other | |
Transmission Type | Shaft Drive | Port Of Loading | Chongqing/Shanghai/Other ports of china | ||
Power | 8.0 kw | Original Manufacturer | Chongqing Tengtian Group | ||
Min.Fuel Consumption | <=354g kw.h | Package | CKD;SKD;CBU | ||
Fuel Type | Gasoline | Loading Capacity (SKD) | 16 units in 20"GP, 42 Units in 40"HQ | ||
Fuel Tank Capacity | 12 L | Delivery Time (from loading port) | 20-25 Days after receiving advance payment | ||
Part II Engine Details | Engine Type | Single cylinder,4-stroke,camshaft downward, Lifan, 150cc aircooling | |||
Bore Stroke | 62×49.5mm | ||||
Compression Ratio | 9.5:1 | ||||
Rated Power&Rotating Speed | 8.0 kw /8000rpm | ||||
Max.Torgue/Rotating Speed | 10.5 N.m /5500rpm | ||||
Lowest No-Load Speed Stability | 1500±150rpm | ||||
Displacement(cc) | 149ml | ||||
Ignition System | C.D.I. | ||||
Apply to | Motor tricycle |
Please Note: *All sizes are approximate,any other sizes are available according to customers' special requests. *For more optional details, please contact Chongqing Tengtian Technological Develop Co., Ltd. *Any details of the motor tricycle should subject to our final confirmation before ordering. |
Brief Introduction
Economic and easy to use

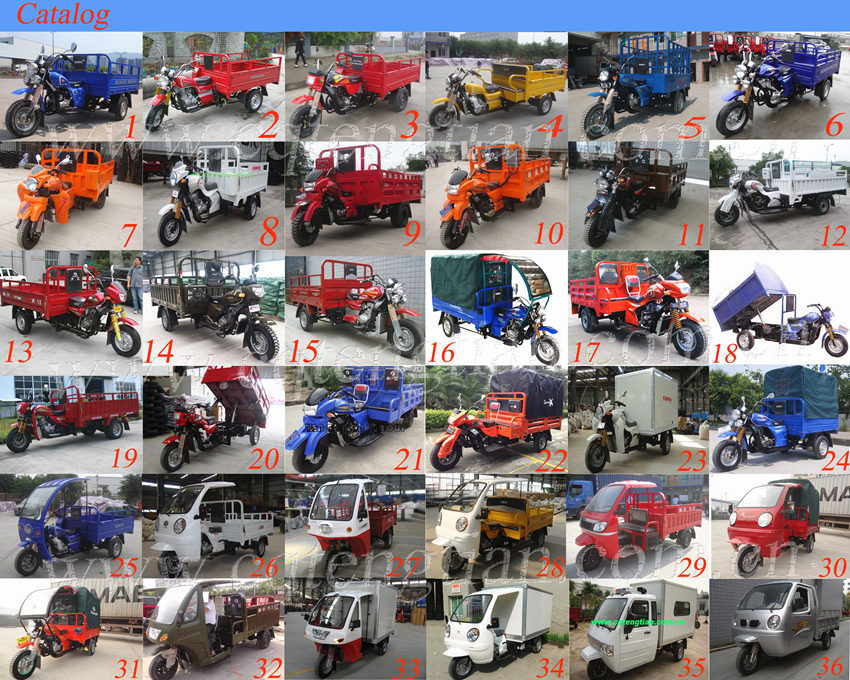

Tricycles vary from size to color
Displayed here is a selection of some of the tricycles that we have produced in the past. This is a mere fraction of the production we have done in the past and it means to give a brief introduction to our range of capabilities and experience. If you require a tricycle you do not see here, please contact us as this is just an example of our product and we can do much more.
Pacakge & Delivery
Normally, our tricycles take SKD / CKD and carton packaging. Different parts with different packaging methods. If you have special requirements, please mention that in advance. Please see our main packaging methods as following:
Why should you choose us?
1. We Tengtian Technological offer outstanding products:
2. Choose us Tengtian Technological, you can get:
