Home Chongqing Tengtian Group 300cc Lifan Engine Three Wheeler Garbage Truck with Pick up Function and Big Rear Box

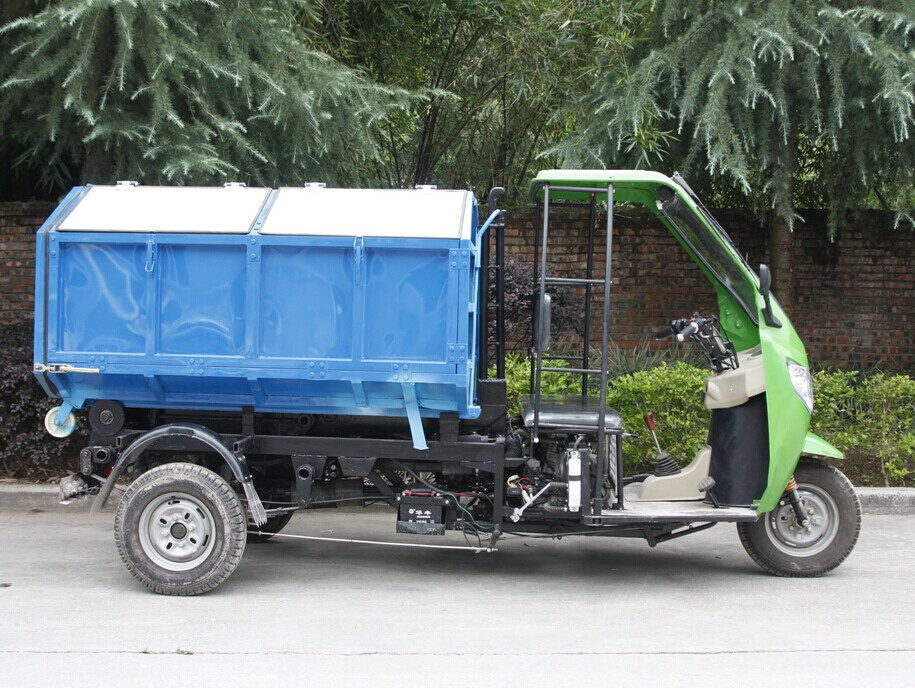

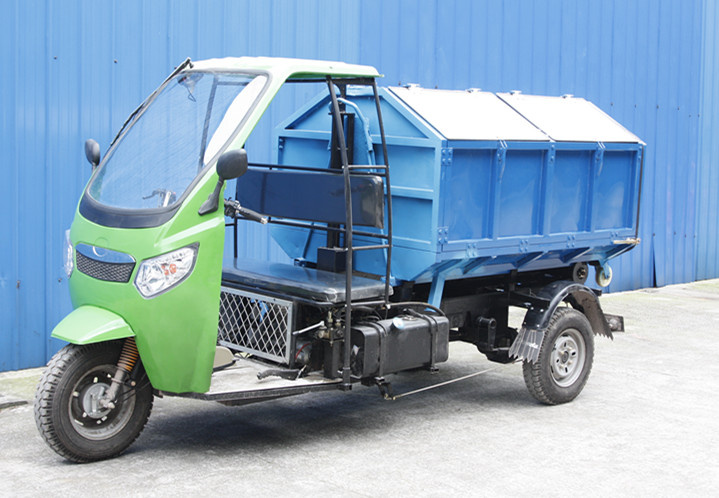

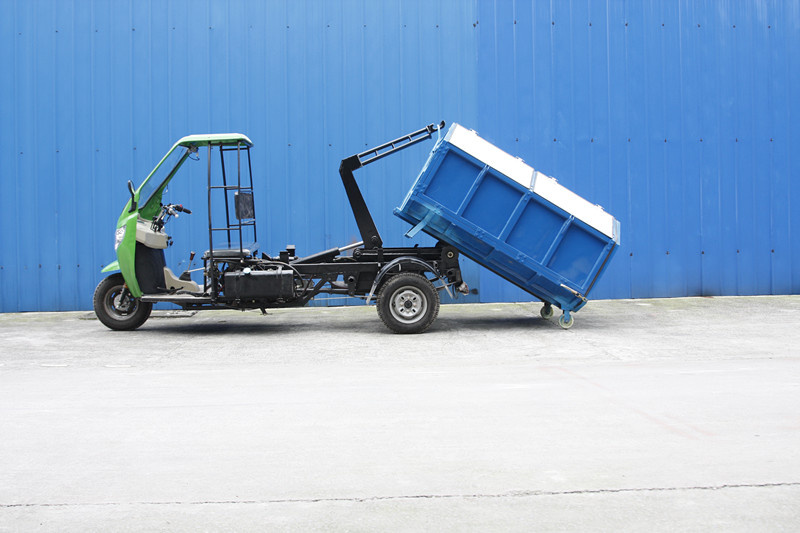

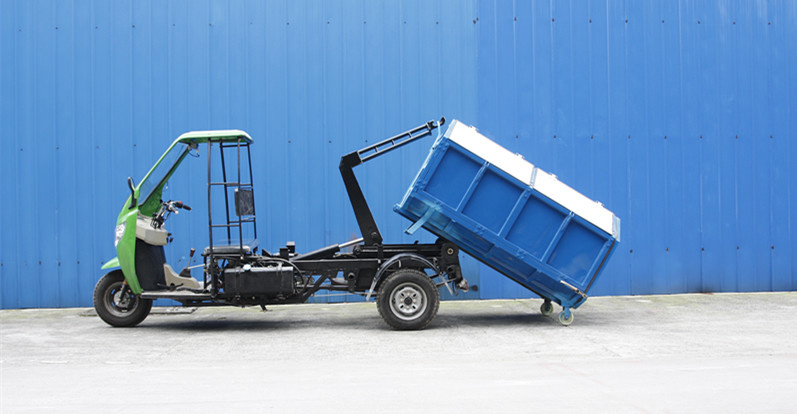

300cc Lifan Engine Three Wheeler Garbage Truck with Pick up Function and Big Rear Box

300cc Lifan Engine Three Wheeler Garbage Truck with Pick up Function and Big Rear Box
Price: US $ 1650-1670/Piece
Trade Terms: FOB,CIF
Min Order: 28/Piece
Pay Type: L/C,T/T,D/P
Technical specifications for three wheel motorcycle

Chongqing Tengtian Technological Develop Co., Ltd.
Product Name300cc LIFAN engine three wheeler garbage truck with pick up function and big rear box
Product Technical Specifications(General Information)
Part I Technical DesignApplicationCargo&passengers Transport
Design Max Speed≥60 km/h
Loading Capacity1100-1300 kg
Unladen Kerb Weight300 kg
Dimension(L*W*H)3200x1260x1450 mm
ColorRed/Green/Yellow/Black/Other colors
Track1050 mm
Wheel Base2100 mm
Ground Clearance160 mm
Brake ModeFront&Back wheels, Drum
Transmission TypeShaft Drive
Power8.0 kw
Cool TypeWater Cooled
Min.Fuel Consumption354g kw.h
Fuel TypeGasoline
Fuel Tank Capacity12 L
Part II Engine DetailsEngine TypeSingle cylinder,4-stroke,camshaft downward
Bore Stroke63.5×49.5mm
Fuel TypeGasoline
Compression Ratio9.5:1
Rated Power&Rotating Speed8.0 kw /8000rpm
Max.Torgue/Rotating Speed11.0N.m /6500rpm
Lowest No-Load Speed Stability1500rpm
Displacement(cc)156ml
Ignition SystemCDI
Apply toMotor tricycle
StarterKick/Electric
Part III OperationStarting SystemElectric/Kick
Transmission5 Forward &1 Reserse Gears
Gearshift ControlManual-Foot
Clutch MethodManual-Hand
Brake Operate ModeManual-Hand or Foot
Part IV PackagingTransportBy Land/Sea/Other
Port Of LoadingChongqing/Shanghai/Other ports of china
PackageProtective Packaging /CKD,SKD
Loading Capacity (CKD)22 units in 20"GP,54Units in 40"HQ
Delivery Time (from loading port)20-25 Days after receiving advance payment
Please Note:
*All sizes are approximate,any other sizes are available according to customers' special requests.                                                                               *For more optional details, please contact Chongqing Tengtian Technological Develop Co., Ltd.                         *Any details of the motor tricycle should subject to our final confirmation before ordering.


Brief Introduction
Economic and easy to use
Humanized configuration: Motorized tricycles replaced traditional labor force transportation, more convenient and faster, save your costs both on energy and time. Especially very powerful and useful when transporting large and heavy goods and driving roads with serious condition.
Low maintenance: With correct using, the robust and reliable body & power source of tricycles will keep health for a long time. Do not need to maintain frequently. Daily inspection and cleaning can be easy finished by yourselves in your garden or before your house door. All these require little maintenance fee.
Ready to use: The operating system of cargo tricycle is very easy to handle, and much closer to common users. Its simplicity allows many operators to use without in-depth training.

Tricycles vary from size to color
Displayed here is a selection of some of the tricycles that we have produced in the past. This is a mere fraction of the production we have done in the past and it means to give a brief introduction to our range of capabilities and experience. If you require a tricycle you do not see here, please contact us as this is just an example of our product and we can do much more.


Contact me:Amber chen
mobile:8613996233764
website:www.cqtengtian.en.aibaba.com
Prod Model: TT250G-1
Markets: South America,Southeast Asia,Africa,Mid East,Eastern Asia
Type: Cargo Motorcycle
Displacement: 126-250CC
Engine Type: 4-Stroke
Fuel: Gas / Diesel
Certification: CCC
Condition: New
Chongqing Tengtian GROUP...Is one of the fast-developing tricycle manufacturers in China, which was established in 2005 and specialized in research, manufacture and international sales of motor tricycles. Our company occupies 13, 320 square meters and has 150 staff members.

Based on advanced inspection & production assembly lines, own professional R&D team, we can provide different sizes of tricycles with various options and annual production capability achieves 50000 sets. Via 8-year professional export experience, we have built a broad marketing channel, a solid customer foundation and our brand "DUCAR" have created an excellent business reputation in many countries and regions.

Our target international market includes Africa, Southeast Asia, South America and Middle East. To be more competitive, we have been accredited to ISO9001: 2008, and product quality well meets CCC national compulsive certification. What's more, large-scale production, systematic network sales construction and outstanding after-sales service are all our competitive advantages.

Adhering to the idea of fast, concise, personality and excellent, we will train and cultivate talents as our core competitive edge, and run our brand with more open, peaceful and serious mind.

Your success is our source. We hold the policy of quality first, users first. Warmly welcome all partners home and abroad to cooperate with us. Let's create a better future together.
