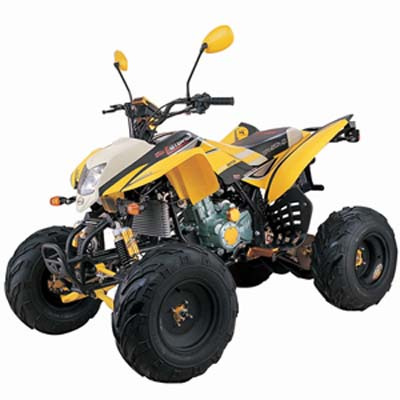

Home Chongqing Bashan Motorcycle Co., Ltd. ATV200S-7(Water Cooled) With EEC
Specifications
| Prod Model: | ATV200S-7( water cooled) |
|---|
Product Description
ENGINE TYPE: single-cylinder, 4-stroke, water-coolingDISPLACEMENT: 197ml
IGNITION MODE: CDI
POWER: 9.5km/7500rpm
COMPRESSION PROPORTION: 9.2: 1
STARTING electric
Transmission mode chain
TRANSMISSION: 4 gears with one reverse manual clutch
CYLINDER SIZE: 63. 5*62. 2mm
FRONT SUSPENSION: double arm-swing
REAR SUSPENSION: integral
FRONT/REAR BRAKES: disc/disc
FRONT TIRES: 21*7-10
REAR TIRES: 20*10-10
WHEELBASE: 1160mm
TURNING RADIUS: 2650mm
DRY WEIGHT: 167kg
LOAD capacity: 105kg
LENGTH/WIDTH/HEIGHT: 1680*1115*1120mm
SEAT HEIGHT: 850mm
FUEL CAPACITY: 4
GROUND CLEARANCE:100
MAX SPEED ≥80km/h
MAX. NUMBER OF DRIVERS:1
CLIMBING DEGREE≥20
COLORS RED/BLUE/YELLOW/BLACK/GREEN/camouflage
PACKAGE SIZE: 1485*850*880
20GP CAPACITY: 20
40GP CAPACITY: 44
40HQ CAPACI: 66
