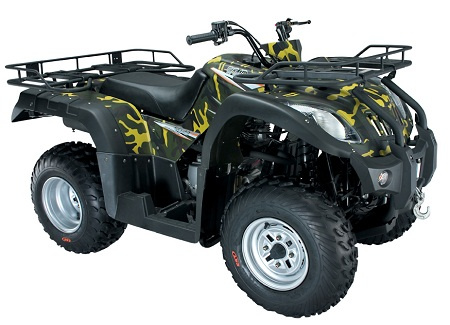

ATV 250-5 with EEC

Specifications

Prod Model:	ATV250-5 with EEC

Product Description

1) Size (L x W x H): 1, 960 x 1, 010 x 1, 120mm
2) Wheelbase: 1, 160mm
3) Seat Height: 780
4) Ground clearance: 155
5) Drin turning: 2, 900
6) Fuel capacity: 12L
7) Wheels front/rear vacuum
A) Types front AT22 x 7-10/20kPa
B) Types rear AT22 x 10-10/25kPa
8) Suspensions front/rear suspension rod/rotary rod
9) Brakes front disk brake/right hand operation
10) Brakes rear drum brake/foot operation and left hand operation
11) Dry weight: 220kg
12) Max. Loading: 165kg
13) Brake distance: 7m/30km/h
14) Min. Fuel: 2.5L/100km
15) Maximum speed: 65km/h
16) Max. Angle: >=25degrees
17) Engine type: Single-cylinder, air-cooled, 4-stroke
18) Engine model JS171FMM-3/JIANSHE
19) Bore x stroke: 71 x 58
20) Displacement: 229.6cbm
21) Compression ratio: 8.7: 1
22) Carburetor vacuum film piece type
23) Rated power: 10.0kW (7, 000r/min)
24) Max. Torque: 15.0 N. M (5, 500r/min)
25) Ignition: CDI
26) Starter hand pulled recoil starter/electric starter
27) Shift type 5 speed front driving and 1 speed reverse driving
28) Transmission ratio: 2.838/1.789/1.318/1.040/0.821 and 41.5
29) Transmission type axle/shaft
30) Clutch Wet automatic centrifugal clutch
31) Gasoline RQ-90 GB17930-2000
32) Engine lubricant:
A) -25C - 0C SE 15W/30 GB11121
B) -10C-35C SE 10W/30 GB11121
C) 15C-45C SE 15W/40 GB11121
33) Rear transmission gear box lubricant SAE 80 API GL
34) Lubrication oil capacity of engine 1.8L
35) Lubrication press/splash
36) Spark plug D7RTC
37) Battery type 12V 14Ah
38) Color: Red, black, green, blue, camouflage yellow, army green
Qty/20' FCL: 10 units Qty/40' HQ: 36 units
