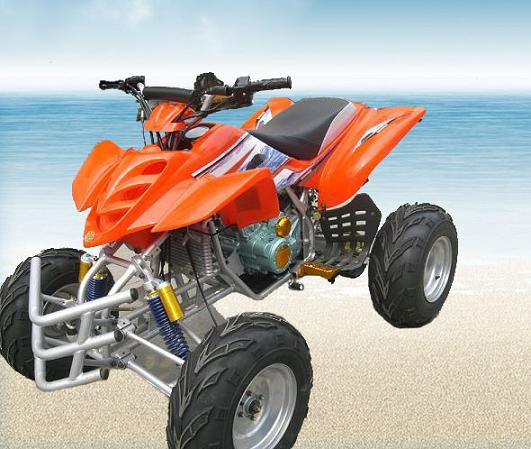

ATV (ZL-ATV200B)

Specifications

Product Description

1) Engine type: 200cc Manual clutch with reverse gear,
Water-cooled, single cylinder, 4 strokes.
2) Displacement: 197ml
3) Max. Power(Kw/r/min): 12.0/8, 000
4) Max. Torque(N. M/r/min): 15.0/6, 000
5) Compression rate: 10.16: 1
6) Drive system: Chain
7) Clutch: Manual clutch
8) Brake: (F/R) drum / hydraulic disc brake
9) Tire: (F)22X7.0-10, (R)21X10-10
10) Max. Speed: >=90km/h
11) Battery: 12V x 9Ah
12) Seat height: 840mm
13) Wheel base: 1, 100mm
14) Ground clearance: 190mm
15) Suspension: Front left & right / Rear suspension, W /double "A" swing arm
16) Ignition type: CDI
17) Start system: Electric start
18) Dimensions: 1, 700 x 1, 000 x 1, 170mm
19) Max. Load: 150Kg

Packing:
Steel frame and carton
Carton dimensions: 1, 600*980*760mm
N. W: 149Kg
G. W: 175Kg
