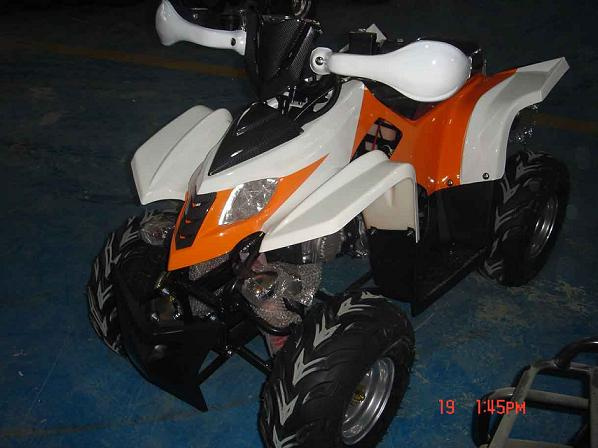

ATV (ZL-ATV110C)

Specifications

Product Description

1) Engine type: 50CC/70CC/90CC/110CC automatic clutch, air-cooled, single cylinder, 4 strokes.
2) Displacement: 49.46/106.7ml
3) Max. Power(Kw/r/min): 2.6/(8, 500 + - 5%), 5.0/8500
4) Max. Torque(N. M/r/min): 3.0/(7, 500 + - 5%), 6.7/6000
5) Compression rate: 9.4: 1/9.7: 1
6) Drive system: Chain
7) Clutch: Automatic clutch
8) Brake: Rear hydraulic disc brake
9) Tire: 14.5X7.0-6(F/R)
10) Max. Speed: >=60km/h
11) Battery: 12V x 5An
12) Seat height: 570mm
13) Wheel base: 820mm
14) Ground clearance: 80mm
15) Suspension: Front and rear hydraulic suspension
16) Ignition type: CDI
17) Start system: Electric start
18) Dimensions: 1, 250 x 710 x 860mm
19) Max. Load: 150Kg

Packing:
Steel frame and carton
Carton dimensions: 1, 150 X 670 X 560mm
N. W: 72Kg
G. W: 88Kg
