Home Ningbo Antai Winch Technology Co., Ltd. ATV Winch 3500lbs
Specifications
| Prod Model: | AT3500 |
|---|
Product Description

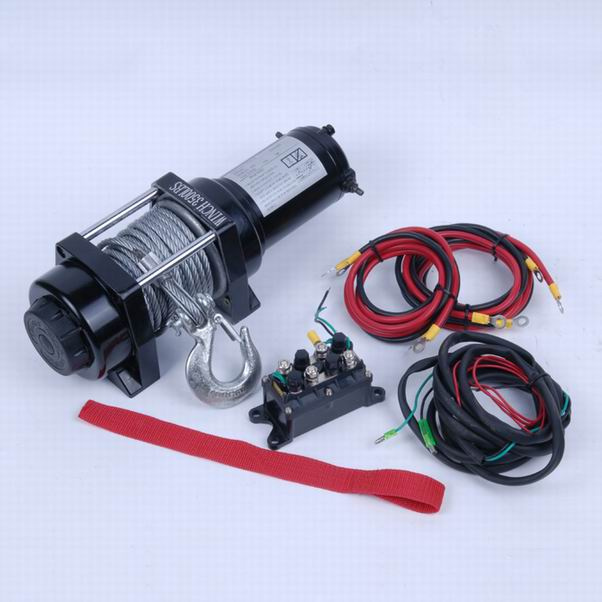

Rated line pull: 3500lbs(1517kgs) single lineMotor: Permanent magnet, 1.0kw/1, 34HP(12v)
Gear reduction ratio: 153: 1
Gear train: 3 Stage Planetary
Cable (Dia x L): Diamete0.19"(4.8mm)Length36.2'(9.2m)
Control: Remote switch
Drum size: Dimaete2.0"(51mm)Length2.9"(74mm)
Clutch: Sliding Ring Gear
Braking action: Automatic In-The-Drum
Overall dimensions(L x W x H): 12.9" X 4.3" X 4.5"(330mm X 110mm X 115mm)
Mounting bolt pattern: 3.13"(79.5mm)
Weight: N. W. 10kg G. W. 12kg
Packing size: 40.5× 26cm× 35cm(2PC)
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 23.7 ( 6.7 ) | 26 |
| 1000(454) | 20.8 ( 6.3 ) | 69 |
| 2000 ( 680 ) | 13.5 ( 4.1 ) | 105 |
| 3000 ( 1134 ) | 8.5 ( 2.2 ) | 136 |
| 3500 ( 1588 ) | 6.8 ( 2.0 ) | 168 |
PULL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(mm) |
| 1 | 3500 ( 1588 ) | 8.0 ( 2.4 ) |
| 2 | 2320 ( 1052 ) | 11.5 ( 3.5 ) |
| 3 | 1890 ( 858 ) | 19.6 ( 6.0 ) |
| 4 | 1590 ( 720 ) | 28.6 ( 8.7 ) |
| 5 | 1975 ( 896 ) | 49.3 ( 15 ) |
