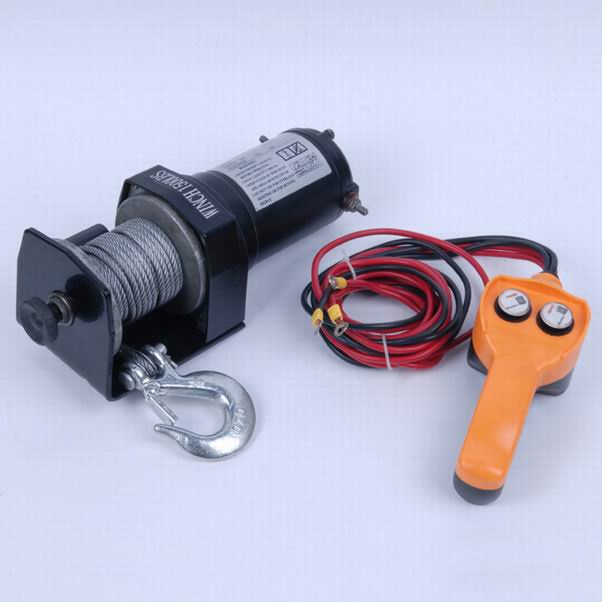

ATV Winch (2000lbs)

Specifications

Prod Model:	2000lbs

Product Description

Rated line pull 1500LBS(680)single line
Motor Permanent magnet, 0.7kw/0.9HP(12v)
Gear reduction ratio 153: 1
Gear train 3 Stage Planetary
Cable (Dia x L) Dimaete0.19"(4.8mm)Length32.2'(9.2m)
Control Remote switch
Drum size (Dia x L) 1.24"(31.5mm) x2.8"(71mm)
Clutch Sliding Ring Gear
Braking action Automatic In-The-Drum
Overall dimensions(L x W x H) 11.4" x4.3" x 4.3"(290 x 110 x 110)
Mounting bolt pattern 3.13"(79.5mm)
Weight N. W. 6kg G. W. 8kg
Packing size 48*34*34(4PC)

PRODUCT FEATURES
1. Convenient, portable power for pulling boats, stuck vehicles and other heavy item.
2. Powerful 1500Lb pulling power.
3. 12Volt powered for convenient use without extension cords or small gas engines.
4. Portable, with built-in carrying handle and quick-attach mounting plate.
