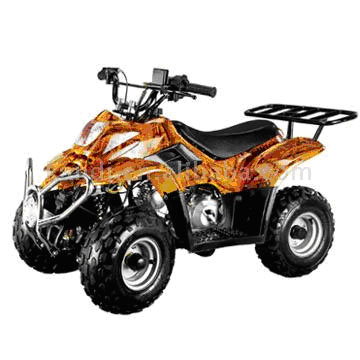

ATV (RB50-E)

Specifications

Prod Model:	RB50-E

Product Description

Rb50-e
1) engine type: 50cc, single cylinder, 4-stroke, air-cooled
2) transmission mode: Chain
3) start mode: Electric start
4) max. Speed: 45 km/h
5) wheelbase: 780mm (30. 71")
6) distance between wheels:
A) front: 510mm (20. 08")
B) rear: 480mm (18. 90")
7) tires:
A) front tire: 145 / 70-6
B) rear tire: 145 / 70-6
8) max. Loading 136kg (300lbs. )
9) brakes:
A) front: Hydraulic disk brake
B) rear: Hydraulic disk brake
10) ignition type: Cdi
11) overall dimensions: 1, 150 x 670 x 870mm (45. 27 x 26. 38 x 34. 25")

Packing:
Carton dimensions: 1, 160 x 685 x 650mm (45. 67 x 26. 96 x 25. 59")
N. W.: 70kg (154lbs. )

Conveyance:
Qty/20' fcl: 48pcs
Qty/40' hq: 136pcs
