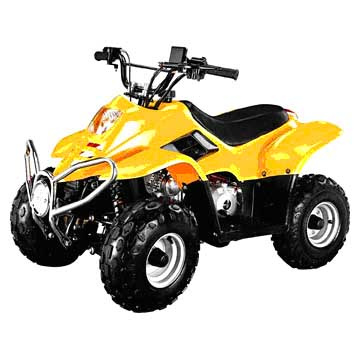

ATV (RB 50-C)

Specifications

Prod Model:	RB 50-C

Product Description

RB 50-C
Specifications:
1) Engine type: 50cc, single cylinder, 4-stroke, air-cooled
2) Transmission mode: chain
3) Start mode: electric start
4) Max. speed: 45km/h
5) Wheelbase: 780mm (30. 71")
6) Distance between wheels:
a) Front: 510mm (20. 08")
b) Rear: 480mm (18. 90")
7) Tires:
a) Front tire: 145 / 70-6
b) Rear tire: 145 / 70-6
8) Max. loading 136kg (300lbs)
9) Brakes:
a) Front: hydraulic disk brake
b) Rear: hydraulic disk brake
10) Ignition type: CDI
11) Overall dimensions: 1, 150 x 670 x 870mm (45. 27 x 26. 38 x 34. 25")

Outer packing:
Carton dimensions: 1, 160 x 685 x 650mm (45. 67 x 26. 96 x 25. 59")
N. W.: 70kg (154lbs)

Conveyance:
Qty/20' FCL: 48pcs
Qty/40' HQ: 136pcs
