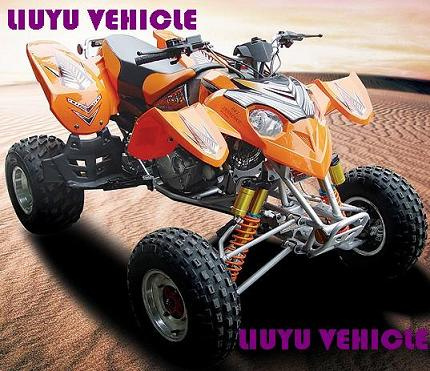

Home Zhejiang Liuyu Industrial And Trade Co, Ltd ATV/QUAD(LY300ATV-1)
| Prod Model: | LY300ATV-1 |
|---|
Product Description
Features:1) Dimensions (L x W x H): 185 x 120 x 116cm
2) Wheel base: 1, 220mm
3) Engine type: Single cylinder, air-cooled, 4-stroke
4) Start mode: Electric
5) Power: 14. 7kW/8, 000rpm
6) Max. Torque: 20N. M/6, 000rpm
7) Max. Speed: 85km/h
8) Min. Ground clearance: 113mm
9) Dry weight: 190kg
10) Transmission mode: Chain
11) Break type (F/R): Disc / disc
12) Power source: 12V, 20Ah
13) Climbing degree: 20 degrees
14) Fuel tank capacity: 10. 50L
15) Front hanging: Double arm-swing
16) Rear hanging: Integral
17) Tires:
A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 10 - 9
18) Cylinder size: 78 x 61.2mm
19) Displacement: 294ml
20) Transmission: 4 gears with reverse gear, manual clutch
21) Height of seats: 860mm
22) Min. Turning radius: 300cm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Load capacity: 150kg
26) Engine oil: 1. 3L
27) Max. Number of riders: 1
28) Lubrication: Press splash
30) Gas cylinder number: 1
Outer packing: Dimensions: 195 x 112 x 88cm
Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 26 units
Qty/40' HQ: 39 units
Established in 2002, Zhejiang Liuyu Industry and Trade Co., Ltd. is one of the major manufacturers of four-wheel vehicles and dirt bikes(pit bikes) in China. Following the concept of blending specialty with perfect quality, our factory is engaged in the production of 7 series of products in 50 different varieties, including ATVs/QUADs, dirt bikes, pocket bike, electric vehicle and other outdoor leisure products. Meanwhile, we also accept OEM orders to better fulfill customers' specifications.
With convenient access to both suppliers of raw aterials and seaports for shipping orders, we have been gradually grown into a comprehensive supplying entity. Following strict quality control procedures, we are able to provide quality products to effectively meet customers' high demand of our products. Moreover, we have put considerable efforts on research and development of innovative products, so as to penetrate into the global market drastically. Consequently, our products are selling well in the North American, Europe and Africa markets.
With convenient access to both suppliers of raw aterials and seaports for shipping orders, we have been gradually grown into a comprehensive supplying entity. Following strict quality control procedures, we are able to provide quality products to effectively meet customers' high demand of our products. Moreover, we have put considerable efforts on research and development of innovative products, so as to penetrate into the global market drastically. Consequently, our products are selling well in the North American, Europe and Africa markets.
