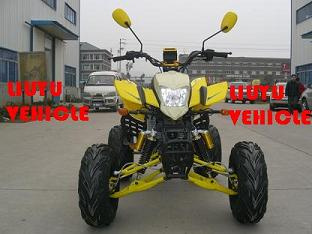

Home Zhejiang Liuyu Industrial And Trade Co, Ltd ATV(LY200S-7)
| Prod Model: | LY200S-7 |
|---|
Product Description
Model Nr: LY200S-7Features:
1) Dimensions (L x W x H): 1, 680 x 1, 115 x 1, 120mm
2) Wheelbase: 1, 160mm
3) Engine type: 200cc, single cylinder, water-cooling, 4-stroke
4) Start mode: Electric
5) Power: 10.5kW/7, 500rpm
6) Max. Torque: 12.1N. M/6, 500rpm
7) Max. Speed: 75km/h
8) Min. Ground clearance: 120mm
9) Dry weight: 155kg
10) Transmission mode: Chain
11) Break type (F/R): Disc/disc
12) Power source: 12V, 9A
13) Climbing degree: 20 degrees
14) Fuel tank capacity: 5. 5L
15) Front hanging: Integral ballonet absorber
16) Rear hanging: Inner ballonet absorber
17) Tires:
A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 10 - 10
18) Cylinder size: 63. 5 x 62. 2mm
19) Displacement: 197ml
20) Transmission: 4 gears with one reverse gear, manual clutch
21) Seat height: 880mm
22) Min. Turning radius: 2, 650mm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Load capacity: 150kg
26) Engine oil: 1.1L
27) Gas cylinder number: 1
28) Max. Number of riders: 1
29) Lubrication: Press splash
30) Compression proportion: 9.2: 1
Outer packing:
Carton dimensions: 148 x 95 x 88cm
Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44 units
Qty/40' HQ: 66 units
Established in 2002, Zhejiang Liuyu Industry and Trade Co., Ltd. is one of the major manufacturers of four-wheel vehicles and dirt bikes(pit bikes) in China. Following the concept of blending specialty with perfect quality, our factory is engaged in the production of 7 series of products in 50 different varieties, including ATVs/QUADs, dirt bikes, pocket bike, electric vehicle and other outdoor leisure products. Meanwhile, we also accept OEM orders to better fulfill customers' specifications.
With convenient access to both suppliers of raw aterials and seaports for shipping orders, we have been gradually grown into a comprehensive supplying entity. Following strict quality control procedures, we are able to provide quality products to effectively meet customers' high demand of our products. Moreover, we have put considerable efforts on research and development of innovative products, so as to penetrate into the global market drastically. Consequently, our products are selling well in the North American, Europe and Africa markets.
With convenient access to both suppliers of raw aterials and seaports for shipping orders, we have been gradually grown into a comprehensive supplying entity. Following strict quality control procedures, we are able to provide quality products to effectively meet customers' high demand of our products. Moreover, we have put considerable efforts on research and development of innovative products, so as to penetrate into the global market drastically. Consequently, our products are selling well in the North American, Europe and Africa markets.
