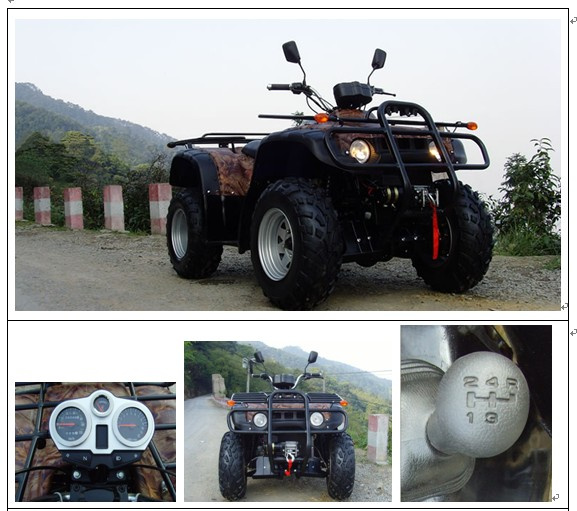

ATV (OO-ATV650-A)

Specifications

Prod Model:	OO-ATV650-A

Product Description

Clutch Type - Single disc, diaphragm spring and dry

Displacement - 644 cc

Gradient Capacity - < 40

Max Power and Rev kw/(r/min): 20.6/4500kw(r/min)

Manufacture power and Rev: 17/4500kw(r/min)

Max Torque and Rev. - 44/(2700-3300)N. M(r/min)

Track(mm)- 1250mm

Vehicle base - 1400mm

Oil Consumption - 329g/(km. /h)

Water Cooled

Engine Rev.

Stroke - Double cylinders, four strokes

Variable Speed Gear - Four shifts forward, one shift backward

Pressure Ratio - 8.4

Starting Type- Electric

Oil Tank Capacity - 13 L

Packing Size - 2250*1260*1160

Battery - 12v36Ah

Net Weight(kg) - 395 KG

Gross Weight(kg) - 480 KG

Chassis - Barreled materials

Absorber Type - Mefferson

Flags Type - Upright

Ignition Type - CDI

Specification of Front Wheel - 2.5*8.00-12

Specification of Rear Wheel - 2.5*10.00-12

Turning Radius - 3m

Drive System - Four-wheel drive/ Shaft transmission

Color - Red

Brake Type - Disc / Hub

Seat Height - 820 mm

Minimum Ground Clearance(mm) - 250mm

Bracket - Backward

Winch - without

Goods Shelves - Forward and Backward

Tire Type - Vacuum

Loading Capacity - 570 KG

Engine Type - Double cylinders, four strokes, water cooled, Straight oblique type and Hemispherical incendiary type.
