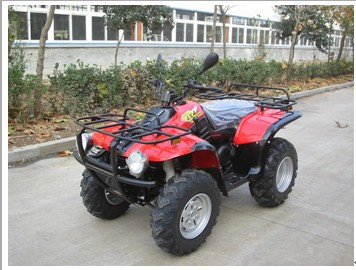

ATV (OO-ATV300)

Specifications

Prod Model:	OO-ATV300

Product Description

Overall Dimension L*W*H - 2100mm*1140mm*1230mm

Ground clearance - 200mm

Max Speed - >60km/h

Climbing Ability - >30

Specification of Front wheel - 25*8-12

Specification of Rear wheel - 25*10-12

Distance between front wheel - 860mm

Distance between rear wheel - 860mm

Distance between front and rear wheel - 600mm

Seat high - 900mm

Distance between front axle and rear axle - 1235mm

Gross weight- 350kg

Dry weight - 300kg

System front/rear Brake - Disk/Disk

Engine- One Cylinder/Four Stroke

Cylinder dia...*Working stroke - 71mm*71mm

Efficient Capacity - 284ml

Rated Power and Rotate Speed - 15.2KW/7600r/min

Max Torque and Rotate Speed - 23N. M/6000r/min

Compressing Ratio - 2.444-0.829

Gearshift Mode - 4 drive/Shaft drive, manual front drive

Transmission - 4 drive/Shaft drive, manual front drive

Starting System - Electric
