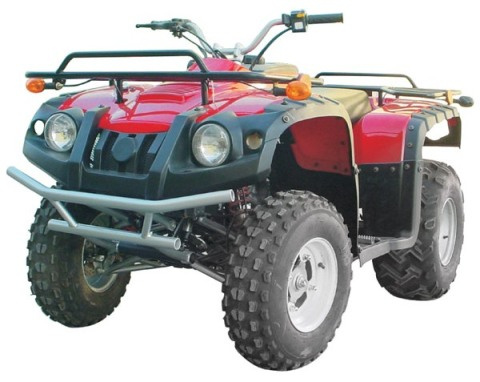

ATV On Road Model (EC250UT)

Specifications

Prod Model:	EC250UT

Product Description

Specifications:
Engine 4-Stroke, Single Cylinder, Water-Cooled
Bore x Stroke 68x58.4 mm
Displacement 220 cc
Compression Ratio 10: 1
Maximum Power 10.5 KW / 6500 rpm
Maximum Torque 17 N. M / 5500 rpm
Starter System Electric Starter
Transmission System Stepless variable speed, w/reverse
Transmission CVT
Front Suspension
Rear Suspension Single Adjustable Shock, Swing Arm
Climbing capability 30 degree

Rear axle structure Coaxial rear cradle
Overall Length 2002 mm
Overall Width 1116 mm
Overall Height 1095 mm
Wheel Base 1210 mm
Ground Clearance 160 mm
Seat Height 840 mm
Gross Weight 220 Kg
Brake (Front/Rear) Disc / Disc
BRAKE OPERATION MODE FRONT: HAND, REAR: FOOT
Tire, Front 21/ 7-10
Tire, Rear 22/ 10-10
Ignition Type C. D. I.
Fuel Tank 10 Liters
ENGINE OIL CAPACITY 2.5 L
Body Color Blue, Red, Black
Package size mm
Loading (40HQ) 42 units
