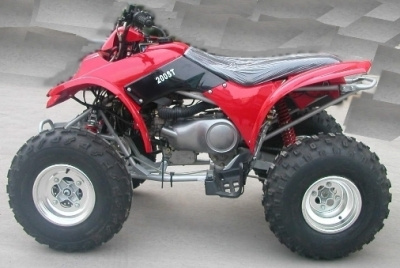

Home Nexmotor Inc. ATV 200ST
Specifications
| Prod Model: | ATV200ST |
|---|
Product Description
L x W x H1740 * 1044 *1140 mm
Wheel Base
1155 mm
Track
804 mm
Ground Clearance
150 mm
Gross Weight
110 Kg
Max. Speed
Km/h
Brake (Front/ Rear)
Disc/ Disc
Brake System
Manual
Wheel Type
Steel
Tires (Front/ Rear)
AT22*7-10/ AT22*10-9
Tire Pressure
30/ 20 KPa
Engine
Model
SOHC, 4-Valve, Water Cooling
Bore *Stroke
64 *59 mm
Displacement
189.7 ml
Compression Ratio
Power/ (rpm)
10/ 8000 Kw/ (rpm)
Max Torque/ (rpm)
1.4/ 6000 Nm/ (rpm)
Min. Fuel Consuming Rate
G/ Kw. H
Fuel Type
Lubrication Type
Lubrication Oil
Clutch Type
Centrifugal Clutch
Starter System
Electric Starter
Ignition Type
C. D. I.
Other Parts
Carburetor
VM24 or PD30
Spark Plug
NGK CR8E
Generator
200/ (6000) W/ (rpm)
