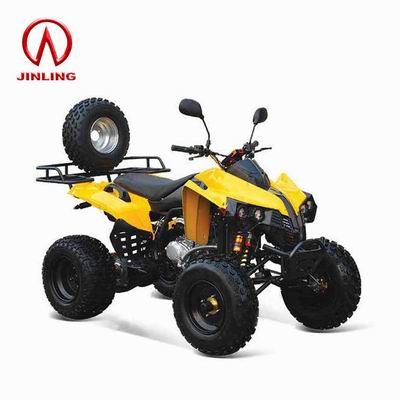

ATV (JLA-823)

Specifications

Prod Model:	JLA-823

Product Description

200cc/250cc atv? ?
1. Engine type: 148cc /196cc/ 248cc
2. Max torque: 10Nm/5500rpm, 13.5Nm/5500rpm, 17.5Nm/5000rpm
3. Max power: 9.3kw/7500rpm, 10kw/7500rpm, 11kw/7500rpm
4. Ignition type: CDI
5. Transmission: Manual reverse, chain drive
6. Brake (Front/Rear): Drum/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 21x7-10. Rear tires spec: 20x10-10
12. Vehicle dimensions: 169x102x108cm
13. Wheel base: 1200mm
14. Seat height from ground: 85cm
15. Ground clearance: 140mm
16. Load capacity: 180kg
17. Fuel tank capacity: 5L
18. Gross weight in carton: 190kg
19. Net weight: 170kg
20. Packing size: 144x88x89cm
Conveyance:
20pcs/20ft
65pcs/40'HQ
