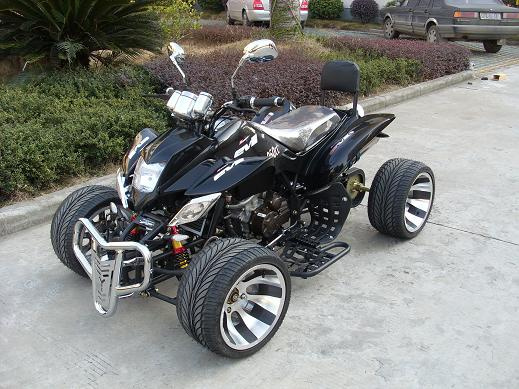

ATV (JLA-21B-A)

Specifications

Prod Model:	JLA-21B-A

Product Description

1. Engine type: 250cc, 4 storke, Water Cooled.
2. Max torque: 17.5Nm/5000rpm
3. Max power: 13kw/7500rpm
4. Ignition type: CDI
5. Transmission: Manual clutch, 4-speed, reverse gear, chain
6. Brake (Front/Rear): Disc /Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm,: Air chamber shock absorbers
10. Rear suspension details: Inner ballonet absorber
11. Front tire spec: 235 /30 - 12 rear tires spec: 235 /30 - 12 Conveyance:
12. Vehicle dimensions: 202 x 113 x 184cm 13. Wheel base: 130cm
14. Seat height from ground: 60cm 15. Ground clearance: 80mm
16. Load capacity: 370kg
17. Fuel tank capacity: 8L
18. Gross weight in carton: 170kg
19. Net weight: 155kg
20. Packing size: 148 x 83 x 84cm
Qty/20' GP: 18 units
Qty/40Qty/40' HQ: 36 units
' GP: 36 units
