Specifications
| Prod Model: | JLA-801 |
|---|
Product Description

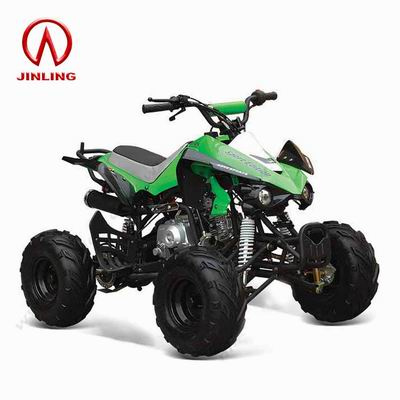

110cc ATV, Quad1. Engine type: 48cc/72cc/86cc/97cc, 4 storke
2. Max torque: 4.2Nm/5000rpm, 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm
3. Max power: 3.0Kw/8500rpm/, 3.0kw/7500rpm, 3.3kw/7500rpm, 3.6kw/7500rpm,
4. Ignition type: CDI
5. Transmission: Automatic, chain
6. Brake (Front/Rear): Drum/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 4AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 145/70-6 rear tires spec: 145/70-6
12. Vehicle dimensions: 141x97x100cm
13. Wheel base: 940mm
14. Seat height from ground: 70cm
15. Ground clearance: 110mm
16. Load capacity: 150kg
17. Fuel tank capacity: 5L
18. Gross weight in carton: 114kg
19. Net weight: 98kg
20. Packing size: 131x77x65cm
Conveyance:
36PCS/20ft
108PCS/40'HQ
