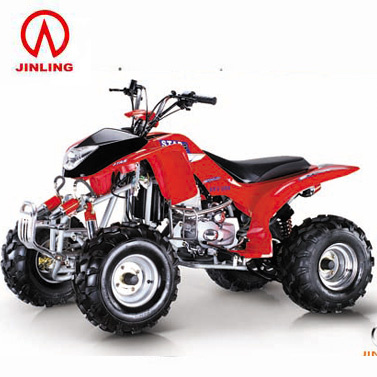

ATV (JLA-22)

Specifications

Prod Model:	JLA-22

Product Description

1. Engine type: 200CC/250CC, 4 storke, Water / Air Cooled.
2. Bore and stroke 63.5x62.2/72x62.2
3. Compression rating: 9.2: 1
4. Max torque: 13.5Nm/5500rpm, 17.5Nm/5000rpm
5. Max power: 10kw/7500rpm, 11kw/7500rpm
6. Ignition type: CDI
7. Transmission: Manual clutch, 4-speed, reverse gear, chain
8. Brake (Front/Rear): Drum or Disc /Disc
9. Starting system: Electric start
10. Battery spec: 12V, 9AH
11. Front suspension details: Double A x swing arm,: Air chamber shock absorbers
12. Rear suspension details: Mono shock swing arm
13. Front tire spec: 19x7-8
14. Rear tires spec: 18x9.5-8
15. Vehicle dimensions: 155x81x100cm
16. Wheel base: 1000mm
17. Seat height from ground: 75cm
18. Ground clearance: 100mm
19. Load capacity: 150kg
20. Fuel tank capacity: 4.5L
21. Gross weight in carton: 160kg
22. Net weight: 140kg
23. Packing size: 147x83x77cm

33PCS/20ft 66PCS/40ft
66PCS/40'HQ
