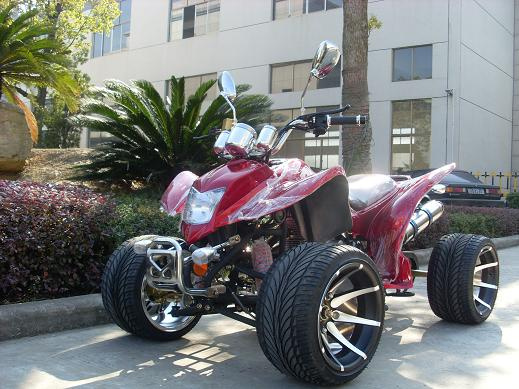

ATV 250CC (JLA-813)

Specifications

Prod Model:	JLA-813

Product Description

1. Engine type: 196CC/248CC, 4 storke, Water / Air Cooled.
2. Max torque: 13.5Nm/5500rpm, 17.5Nm/5000rpm
3. Max power: 10kw/7500rpm, 11kw/7500rpm
4. Ignition type: CDI
5. Transmission: Manual clutch, 4-speed, reverse gear, chain
6. Brake (Front/Rear): Drum/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm,: Air chamber shock absorbers
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 19x7-8 rear tires spec: 18x9.5-8 Conveyance:
12 vehicle dimensions: 155x81x100cm
13. Wheel base: 100mm
14. Seat height from ground: 75cm
15. Ground clearance: 1000mm
16. Load capacity: 150kg
17. Fuel tank capacity: 7.8L
18. Gross weight in carton: 160kg
19. Net weight: 140kg
20. Packing size: 147x83x77cm
