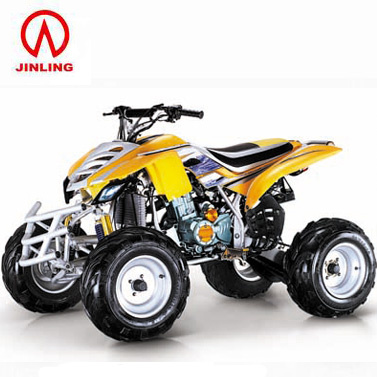

ATV (JLA-21)

Specifications

Prod Model:	JLA-21

Product Description

1. Engine type: 200CC/250CC, 4 storke, Water / Air Cooled.
2. Bore and stroke 63.5x62.2/72x62.2
3. Compression rating: 9.2: 1
4. Max torque: 13.5Nm/5500rpm, 17.5Nm/5000rpm
5. Max power: 10kw/7500rpm, 11kw/7500rpm
6. Ignition type: CDI
7. Transmission: Manual clutch, 4-speed, reverse gear, chain
8. Brake (Front/Rear): Drum /Disc
9. Starting system: Electric start
10. Battery spec: 12V, 9AH
11. Front suspension details: Double A x swing arm,: Air chamber shock absorbers
12. Rear suspension details: Inner ballonet absorber
13. Front tire spec: 21 x 7 - 10
14. Rear tires spec: 20 x 10 - 10
15. Vehicle dimensions: 180 x 112 x 113cm
16. Wheel base: 115cm
17. Seat height from ground: 88cm
18. Ground clearance: 120mm
19. Load capacity: 155kg
20. Fuel tank capacity: 4L
21. Gross weight in carton: 170kg
22. Net weight: 155kg
23. Packing size: 148 x 95 x 88cm
Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44 units
Qty/40' HQ: 66 units
