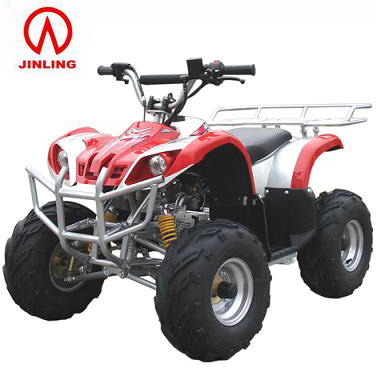

Home Zhejiang Suer Sports Equipment Co., Ltd. ATV (JLA-08)
Specifications
| Prod Model: | JLA-08 |
|---|
Product Description
1. Engine type: 48CC/72CC/86CC/97CC, 4 storke2. Bore and stroke: 39x41.4/47x41.4/47x49.5/52.4x49.5
3. Compression rating: 8.8: 1
4. Max torque: 4.2Nm/5000rpm, 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm
5. Max power: 3.0Kw/8500rpm/, 3.0kw/7500rpm, 3.3kw/7500rpm, 3.6kw/7500rpm,
6. Ignition type: CDI
7. Transmission: Automatic, chain
8. Brake (Front/Rear): Drum/Disc
9. Starting system: Electric start
10. Battery spec: 12V, 4AH
11. Front suspension details: Double A x swing arm
12. Rear suspension details: Mono shock swing arm
13. Front tire spec: 16X8-7 / 19x7-8
14. Rear tires spec: 16X8-7 /18x9.5-8
15. Vehicle dimensions: 130x70x80cm
16. Wheel base: 880mm
17. Seat height from ground: 60cm
18. Ground clearance: 100mm
19. Load capacity: 75kg
20. Fuel tank capacity: 3.2L
21. Gross weight in carton: 95kg
22. Net weight: 73kg
23. Packing size: 131x72x64cm
Conveyance:
38PCS/20ft
108PCS/40'HQ
