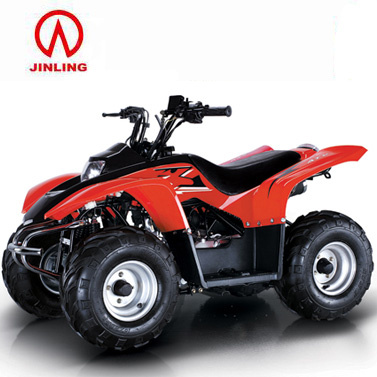

ATV (JLA-03)

Specifications

Prod Model:	JLA-03

Product Description

1. Engine type: 48CC/72CC/86CC/97CC, 4 storke

2. Max torque: 4.2Nm/5000rpm, 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm

3. Max power: 3.0Kw/8500rpm/, 3.0kw/7500rpm, 3.3kw/7500rpm, 3.6kw/7500rpm,

4. Ignition type: CDI

5. Transmission: Automatic, chain

6. Brake (Front/Rear): Drum/Disc

7. Starting system: Electric start

8. Battery spec: 12V, 4AH

9. Front suspension details: Double A x swing arm

10. Rear suspension details: Mono shock swing arm

11. Front tire spec: 16X8-7. Rear tires spec: 16X8-7

12. Vehicle dimensions: 130x70x80cm

13. Wheel base: 880mm

14. Seat height from ground: 60cm

15. Ground clearance: 100mm

16. Load capacity: 75kg

17. Fuel tank capacity: 3.2L

18. Gross weight in carton: 95kg

19. Net weight: 73kg

20. Packing size: 131x72x64cm

Conveyance:

36PCS/20ft t

108PCS/40'HQ
