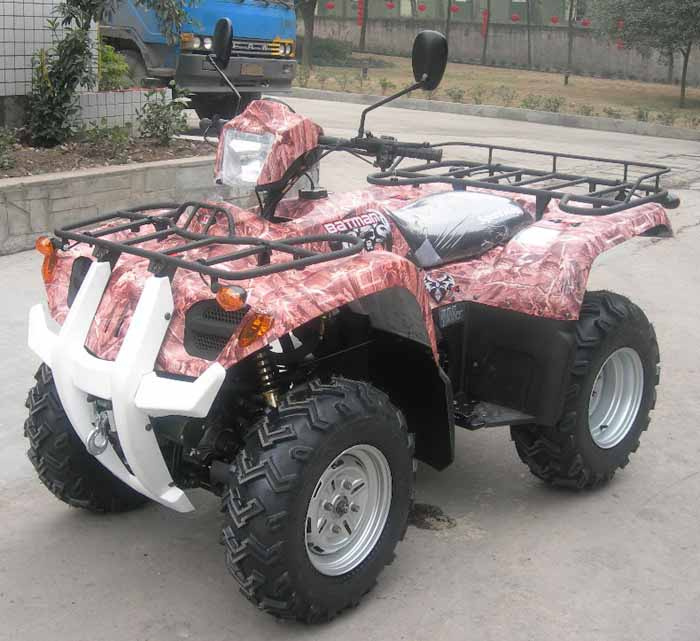

ATV (FA400S)

Specifications

Prod Model:	FA400S

Product Description

400CC EEC/COC ATV (FA400S) Specifications:

1) ATV Engine type: YAMAHA Technology Engine, Single cylinder, air-cooled, 4-stroke
2) Power: 16kW/6, 500rpm
3) Max. Torque: 26N. M/5, 000rpm
4) Min. Ground clearance: 100mm
5) Wheel base: 1, 240mm
6) Fuel tank capacity: 6.6L
7) Transmission mode: Axle
8) Start mode: Electric/manual
9) Tires:
A) Front wheels: 25 x 8-12
B) Rear wheels: 25 x 10-12
10) Max. Speed: 75km/h
11) Break type (F / R): Disc / drum
12) Power source: 12V, 20Ah
13) Height of seats: 860mm
14) Dry weight: 135kg
15) ATV Load capacity: 220kg
16) Climbing degree: 22
17) Front hanging: Double arm-swing
18) Rear hanging: Integral
19) Cylinder size: 83 x 71.6mm
20) Displacement: 387.4ml
21) Transmission: 5 gears with one reverse gear, one neutral-gear, Automatic clutch
22) Min. Turning radius: 2, 900mm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) ATV Engine oil: 2.9L
26) Gear oil:
A) Front tank: 0.4 L
B) Rear tank: 0.25 L
26) Max. Number of riders: 2
27) Lubrication: Press splash
28) Compression proportion: 8.7: 1
29) Gas cylinder number: 1
30) Product dimensions (L x W x H): 2, 100 x 1, 125 x 1, 175mm
Outer packing: Carton dimensions: 2, 150 x 1, 160 x 880mm

ATV Conveyance:
Qty/20' GP: 10 units
Qty/40' GP: 22 units
Qty/40' HQ: 33 units

We have EEC/COC and DOT approved ATV Quad, EEC approved Dirt Bikes, EEC approved Motorcycles, also we supply reliable warranty, which makes us a leading manufacturer in this line in a short time.
