Home Chenyu Group Co., Ltd. ATV (CY50ST-6-50CC)
Specifications
| Prod Model: | CY50ST-6-50CC |
|---|
Product Description

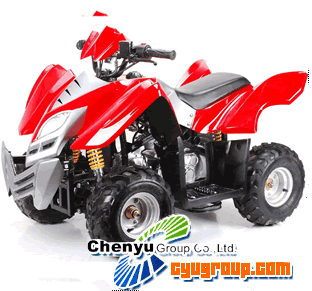

ATVCY50ST-6-50CC (Patent Products, Newest Design)
Dimensions: 133 x 710 x 750mm
Fully auto clutch and gear
Starting system: Electric start
Max speed: 45km/h
Climbing ability: ＞20 degree
Max loading: 140kg
Distance between axles: 750mm
Distance between front wheels: 545mm
Distance between rear wheels: 543mm
Ground clearance: 130mm
Specification of front wheel: 16X8-6
Specification of rear wheel: 16X8-6
Engine: 110cc, single-cylinder, 4 strokes
Rated power and rotation speed: 4.5kw/7500rpm. Approx
Max torque and rotation speed: 7.2N.M/5000r/min
Compression ratio: 7: 1
Transmission:
50-70-90CC: Fully auto clutch and gear
110CC-1: Fully auto clutch and gear
110CC-2: 4 speed semi-auto clutch with reverse gear, circular shift gear
Oil tank: 3.4L
Brake: Rear disc brake
Carton size: 120.5 x 74.5 x 60cm
N.W.: 90kg G.W.: 100kg
Carton for 2pcs wheel: 78.5 x 20 x 40cm
N.W.: 8.7kg G.W.: 9kg
Container Loading: 39pcs/20"ft 78pcs/40"ft 112pcs/40"HQ
