Home Chenyu Group Co., Ltd. Single-Cylinder, Forced Air-Cooled, Four-Stroke ATV (CY125ST-2-150CC)

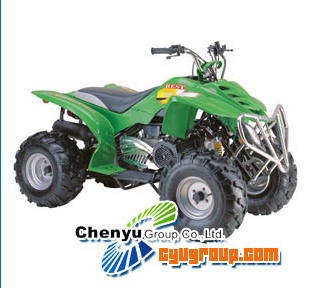

Single-Cylinder, Forced Air-Cooled, Four-Stroke ATV (CY125ST-2-150CC)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | CY125ST-2-150CC |
|---|
Product Description
Wheel base(mm):1040Min.Ground clearance (mm):100
Rim type:Spoke / alloy
Dry weight(kg):130
Fr.Tyre size and air pressure:20×7-8/ 200kpa
Rr.Tyre size and air pressure:20×7-8/225kpa
Fr.Brake:Disk/drum Rr.Brake:Drum
Max.Loading capacity(kg):95
L Fuel tank capacity:
Max.Speed (km/h):50
Break Performance:≤7m/30km/h
Max.Fork advancing angel (°):10
Max.Voice (dB(A)：83
Engine technical data:
Engine model:
Engine type:Single-cylinder, forced air-cooled, four-stroke
Bore X Stroke (mm):
Displacement (ml):124
Compression ratio:
Power (kw/r/min):5.25/7500
Max.Torque (N.M/r/min):8.0/7500
Starting mode:Electric Start/Kick Start
Ignition mode:CDI Electronic ignition
Package information:
Package size:
Package way:Iron and Seven layer carton
