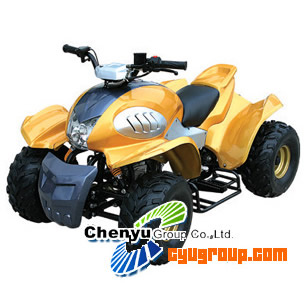

ATV (CY110ST-7-110CC)

Specifications

Product Description

ATV　CY110ST-7-110CC (4 Swing Arm and 3 chain drive and 2 disk brake)

4 Swing Arm and 3 chain drive and 2 disk brake
Max speed: 45km/h
Climbing ability: ＞25 degrees
Max loading: 150kg
Distance between axles: 920mm
Distance between front wheels: 750mm
Distance between rear wheels: 745mm
Ground clearance: 105mm
Specification of front wheel: 16 X 8-6
Specification of rear wheel: 16 X 8-6
Engine:110cc,single-cylinder,4 strokes
Rated power and rotation speed:4.5kw/7,500rpm
Max torque and rotation speed:7.2N.m/5,000r/min
Compression ratio: 7:1
Transmission: 4 speed semi-auto clutch with reverse gear, circular shift gear
Starting system: electric start
Cooling system: air cooling
Oil tank: 6.5L
Brake: rear two hydraulic disk brake
Dimensions: 136 x 90 x 85cm
Carton Size: 129 x 90 x 65cm
G.W./N.W.: 115kg/105kg
Carton for 2pcs wheel: 78.5 x 20 x 40cm
N.W.: 8.7kg G.W.: 9kg
Container Loading: 84pcs/40"HQ
