Home Chenyu Group Co., Ltd. ATV (CY110ST-6-110CC)
Specifications
Product Description

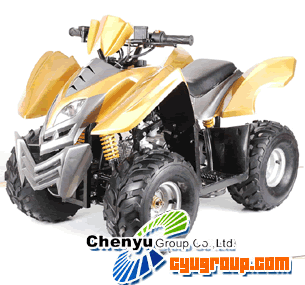

ATVCY110ST-6-110CC (Patent Products, Newest Design)
Max speed: >55km/h
Climbing ability: >30 degree
Max loading: 150kg
Distance between axles: 960mm
Distance between front wheels: 745mm
Distance between rear wheels: 740mm
Ground clearance: 125mm
Specification of front wheel: 16 X 8-6
Specification of rear wheel: 16 X 8-6
Engine: 110cc, single-cylinder, 4 strokes
Displacement: 110ml
Rated power and rotation speed: 4. 5kw/7500rpm
Max torque and rotation speed: 7. 2N. M/5, 000r/min
Compression ratio: 7: 1
Transmission: Fully automatic clutch and 4 speed semi-auto
Starting system: Electric start and kick-back start
Cooling system: Air cooling
Oil tank: 3.4L
Brake: Rear disc brake
Dimensions: 145 x 83 x 88cm
Packing Size: Carton: 130 x 74.5 x 65cm
N.W.: 100kg G.W.: 110kg
Carton for 2pcs wheel: 78.5 x 20 x 40cm
N. W.: 8.7kg G.W.: 9kg
Container Loading: 96pcs/40"HQ
