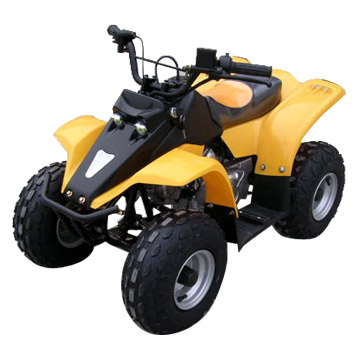

Home China Sun-Power Co., Ltd. ATV 50CC (SF-A-02)
Product Description
4 Stroke; Air-cooledDisplacement: 50CC
1) Max Speed: >30km
2) Climbing ability: >15°
3) Max loading: 80kg
4) Distance between axles: 690mm
5) Distance between front wheels: 420mm
6) Distance between rear wheels: 510mm
7) Ground clearance: 110mm
8) Specification of front wheel: 145/70-6
9) Specification of rear wheel: 145/70-6
10) Engine: 50CC, single-cylinder, 4 stroke
11) Displacement: 49ml
12) Rated power and rotation speed: 2.3kw/8500rpm. Approx
13) Max torque and Rotate Speed: 2.7N. M/6500r/min
14) Compression ratio: 7: 1
15) Transmission: Fully auto clutch and 4 speed semi auto
16) Starting system: Electric start and kick-back start
17) Cooling system: Air cooling
18) Oil tank: 3.4L
19) Brake: Front and rear disc brake
Packing: Carton: 1150 x 760 x 700mm
Dimensions: 1120 x 730 x 560mm
N. W.: 63kg
G. W.: 71kg
Conveyance:
Qty/20' FCL: 48
Qty/40' FCL: 102
Qty/40' FCL (HQ): 136
China Sun-Power Co., Ltd. is located in the China Hardware Capital-Yongkang city, 8 kilometers from the Dongyong 2ed line, it is very convenient. Our factory covers 15, 000 square meters. We own a group of professional engineers with abundant manufacture experiences and good exploitation ability. We gain the customer and market relying on superior quality, attractive designs, best service and reasonable price, and enjoy a good reputation in our customers.
