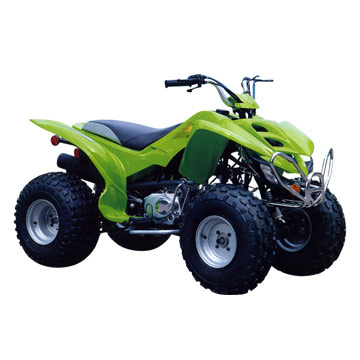

ATV 110CC (SA-A-03)

Specifications

Product Description

1) Engine type: 4-strokes, air cooled 110CC

2) Transmission system: Shaft drive

3) Bore x stroke (mm): 52.4 x 49.5

4) Piston displacement (ml): 107

5) Maximum power (kw/r/min): 5.5/8000

6) Maximum torque: 6.5/5750

7) Starting system: Electric starter

8) Transmission: 4-speed, semi automatic

9) Seat height (mm): 670

10) Min turning radius (mm): 2400

11) Ground clearance (mm): 100

12) Brake (front/rear): Drum/drum

13) Tire (front): 19 x 7-8/29psi

14) Tire (rear): 18 x 9.5-8/2.9psi

15) Ignition type: C. D. I

16) Fuel tank capability (L): 7.8

17) Front suspension: Leading arm

18) Rear suspension: Mono shock swing arm

19) Parking brake: Mechanical lock

20) Battery: 12V-9AH

21) Loading: 40"=66 boxes

22) Max load capacity (kg): 95

23) Engine oil capacity (L): 0.95

24) Gear oil capacity (L): 0.12

25) Dry weight (kg): 130

26) Rider capacity: 1 person

27) Rear track (mm): 710

28) Front track (mm): 725

29) Wheel base: 1040

30) Overall height (mm): 950

31) Lubrication: Auto

32) Overall length (mm): 1540

33) Overall width (mm): 860

34) Compression ratio: 9.1: 1

35) Cylinder arrangement: Single cylinder
