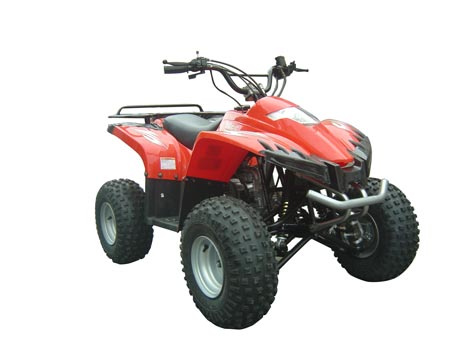

Home Chongqing Joyhon Motorcycle Manufacturing Co., Ltd. ATV 50cc (JH50ST-6)
Specifications
| Prod Model: | JH50ST-6 |
|---|
Product Description
Model Name: JH50ST-6Specification
Engine Type: Air-Cooled; 4 Stroke;
Cylinder Arrangement 1 Cylinder
Compression Ratio: 8.8: 1
Maximum Power (kW/r/m): 3.8/8000
Maximum Torque (N. M/r/min): 4.5/6000
Bore x Stroke(mm): 47 x 41.5
Displacement(cc): 49
Ground Clearance (mm): 110
Ignition System: CDI
Starting System: Electrical Starter
Clutch Type: Automatically
Drive System: Chain Drive
Transmission Type: Automatically
Lubrication System: Pressure & Splash
Fuel Tank Capacity (L): 3.2
Engine Oil Capacity (L): 0.65
Fuel Type: RQ90 (Unleaded)
Overall length x width x height (mm): 1410 x 860 x 915
Seat Height(mm): 542
Wheel Base(mm): 828
Suspension Type (Front/Rear): Double Wishbone (Independent) / Swing Arm (Monocross); Featuring with Compression-stroke and rebound-stroke damping adjustment
Shock Absorber Type: (Front/Rear): Hydraulic Shock Absorber;
Front/Rear Brake: Drum x 2 / Hydraulic Disc x1;
Front/Rear Tire Size: AT16 x 8-7 / 16 x 8-7;
Max. Speed (Km/h): 35
Battery Type/Capacity: 12V/4Ah
Dry Weight (Kg): 73
Load Weight (KG): 45
Color: Red; Black; Green; Yellow; White;
Payment Term: T/T or Irrevocable L/C at Sight
Delivery Time: 15 days
FOB Chongqing
