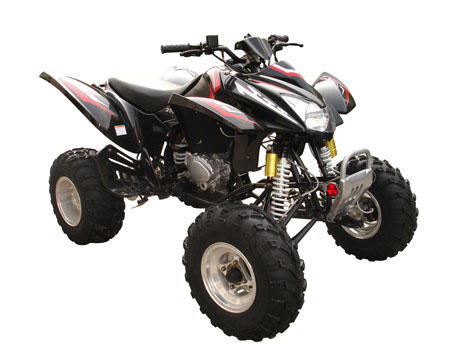

250cc Sports ATV (JH250ST-6C)

Specifications

Prod Model:	JH250ST-6C

Product Description

Engine Type: Air-Cooled; 4 Stroke;
Cylinder Arrangement 1 Cylinder
Compression Ratio: 9.2: 1
Maximum Power (kW/r/m): 11.5 / 6500
Maximum Torque (N. M/r/min): 17.5 / 5500
Bore x Stroke(mm): 67 x 65
Displacement(cc): 230
Ground Clearance (mm): 200
Ignition System: CDI
Starting System: Electrical Starter
Clutch Type: Manual
Drive SystemChain Drive
Transmission Type: 4 Speeds + Reverse;
Lubrication System: Pressure & Splash
Fuel Tank Capacity (L): 9.8
Engine Oil Capacity (L): 1
Fuel Type: RQ90 (Unleaded)

Overall length x width x height (mm): 1870x1150x1160
Seat Height(mm): 860
Wheel Base(mm): 1260
Suspension Type (Front/Rear): Double Wishbone (Independent) / Swing Arm (Monocross); Featuring with Compression-stroke and rebound-stroke damping adjustment;
Shock Absorber Type: (Front/Rear) Pneumatic Shock Absorber/Hydraulic Shock Absorber; Featuring with Compression-stroke and rebound-stroke damping adjustment;
Front/Rear Brake: Hydraulic Disc x 2 / Hydraulic Disc x1;
Front/Rear Tire Size: 23 x 7-10 / 22 x 10-10
Minimum Turning Radius (mm): 2750
Max. Speed (Km/h): 70
Battery Type/Capacity: 12V/9Ah
Others:
Dry Weight (Kg): 190
Load Weight (KG): 150
Max. Climbing Degree: 30
Color: Red; Black; Yellow; Blue
Container Loading Capacity: 12pcs/ 20ft; 28pcs/40ft; 42pcs/40HQ;
Payment Term: T/T or Irrevocable L/C at Sight
Delivery Time: 15 days
