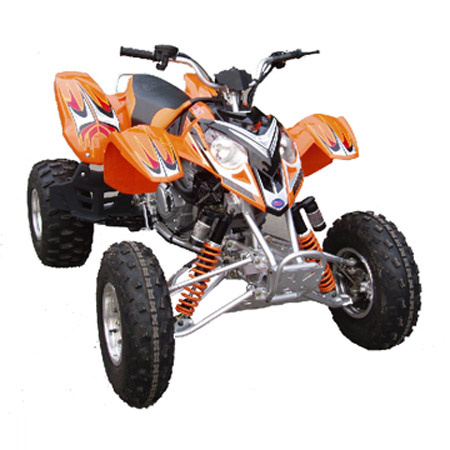

ATV (300CC)

Specifications

Prod Model:	BL-ATV300A

Product Description

Art. NO.: BL-ATV300A
Engine
Type: Single cylinder, air-cooled, 4-stroke
Ignition mode: CDI
Compression proportion: 8.9: 1
Start mode: Electric
Fuel tank capacity: 10L
Transmission mode: Chain
Power: 14.7kW / 8, 000rpm
Max. Torque: 20N. M / 6, 000rpm
Min. Ground clearance: 113mm
Max. Speed ≥85km/h
Power source: 12V, 20Ah
Transmission: 6 gears with reverse gear, manual clutch
Cylinder size: 78 x 61.2mm
Engine oil: 1.3L
Lubrication: Press splash
Displacement: 297mL
Parking trig: Mechanical lock
Gas cylinder number: 1
Chassis
Front wheels: 21x 7-10
Rear wheels: 20 x 11-9
Break type (F/R): Disc / disc
Front hanging: Double arm-swing
Rear hanging: Integral
Dimensions
Product dimensions: 1, 840 x 1, 200 x 1, 175mm
Carton dimensions: 1, 950 x 1, 120 x 880mm
Wheelbase: 1, 230mm
Height of seats: 860mm
Dry weight: 190kg
Load capacity: 150kg
Climbing degree: ≥20'
Min. Turning radius: 3, 000mm
Max. Number of riders: 1
Others
Conveyance: Qty/20' GP: 10 units
Qty/40' GP: 24 units
Qty/40' HQ: 36 units
Color: Red/yellow/blue/green/camouflage
