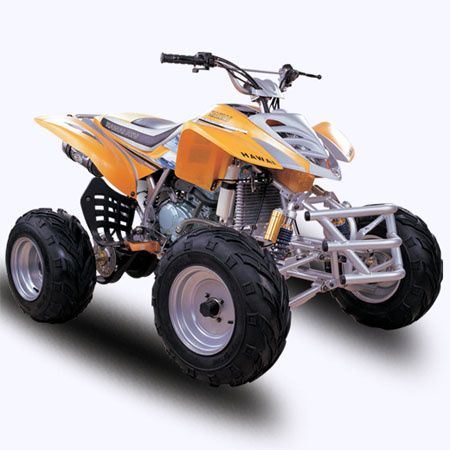

ATV (250CC)

Specifications

Prod Model:	BL-ATV150C

Product Description

Art. NO.: BL-ATV200D
Dimensions (L x W x H): 180 x 112 x 113cm
Wheel base: 115cm
Engine type: Single cylinder, water-cooling, 4-stroke
Start mode: Electric
Power: 10.3kW/7, 500rpm
Max. Torque: 15N. M/6, 000rpm
Max. Speed: 75km/h
Min. Ground clearance: 120mm
Dry weight: 155kg
Transmission mode: Chain
Break type (F/R): Drum / disc
Power source: 12V, 9Ah
Climbing degree: 20
Fuel tank capacity: 4L
Front hanging: Integral ballonet absorber
Rear hanging: Inner ballonet absorber

Tires:
A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 10 - 10
Cylinder size: 63.5 x 62.2mm
Displacement: 197mL
Transmission: 4 gears with one reverse gear, manual clutch
Height of seats: 880mm
Min. Turning radius: 2, 650mm
Parking trig: Mechanical lock
Ignition mode: CDI
Load capacity: 150kg
Engine oil: 1.1L
Gas cylinder number: 1
Max. Number of riders: 1
Lubrication: Press splash
Compression proportion: 9.2: 1
